Waveshare Ethernet and USB HAT for Raspberry Pi

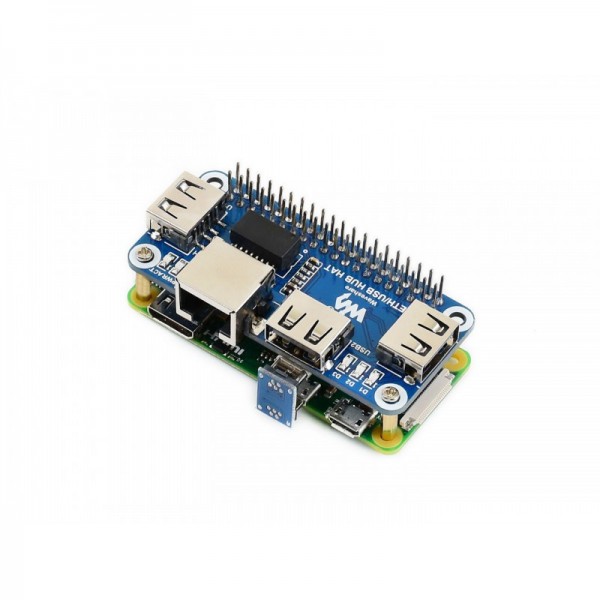

With this HAT you can expand a Raspberry Pi with 3 USB-A ports and an RJ45 Ethernet port. The HAT is specially designed for the Raspberry Pi Zero, but also works with other models.

Specifications:

• Compatible with Raspberry Pi: B+/2B/3B/3B+/4B/Zero/Zero W/Zero WH
• Supply voltage: 5V DC
• Ethernet:
  • Chipset: RTL8152B
  • Output interface: 10/100Mbps RJ45 Ethernet port
• 5 Indication LEDs

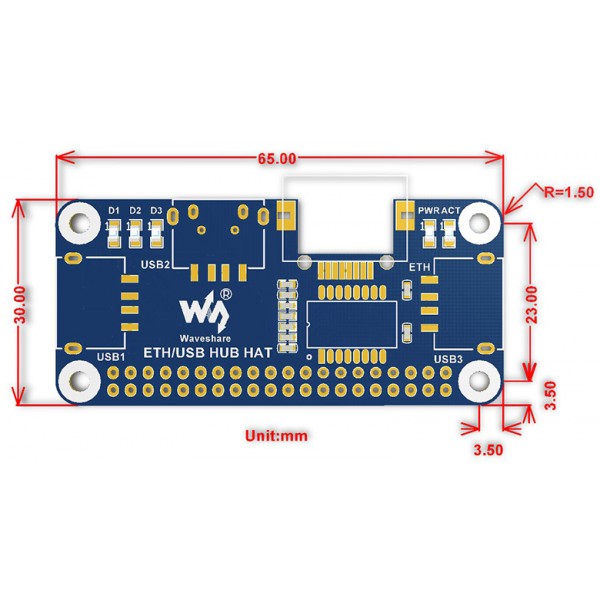

• Dimensions: See images

Package contents:

• 1x Ethernet and USB HAT
• 1x Mounting material
• 1x USB-A to Micro USB cable
• 1x Micro USB to Micro USB connector (for Zero models)

Note: Raspberry Pi not included!

See the following page for more information: Wiki
