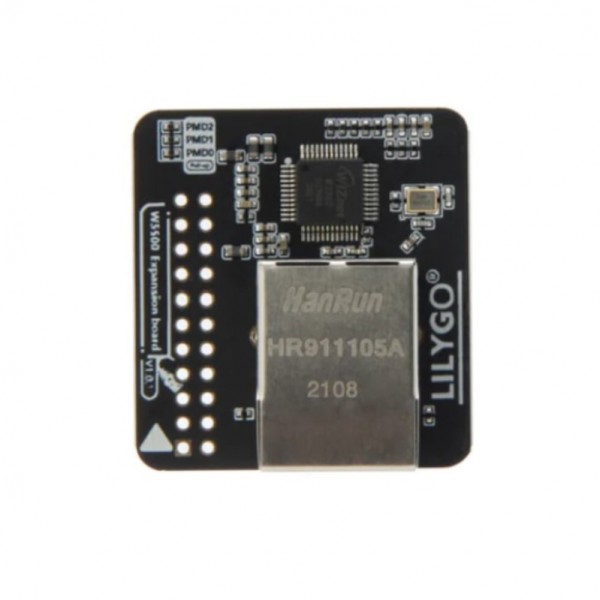

LilyGO T-Relay W5500 Ethernet Shield

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

A W5500 ethernet expansion shield from LilyGO, compatible with the T-Relay ESP32 boards (not for the T-RelayS3).

See the following page for more information: GitHub

Please login or register to review

This product has 0 review(s) in total.

Tags: LilyGO T-Relay W5500 Ethernet Shield , LILYGO-H671 , Modules

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H671
General physical appearance
Main color	Black
Weight [g]	11

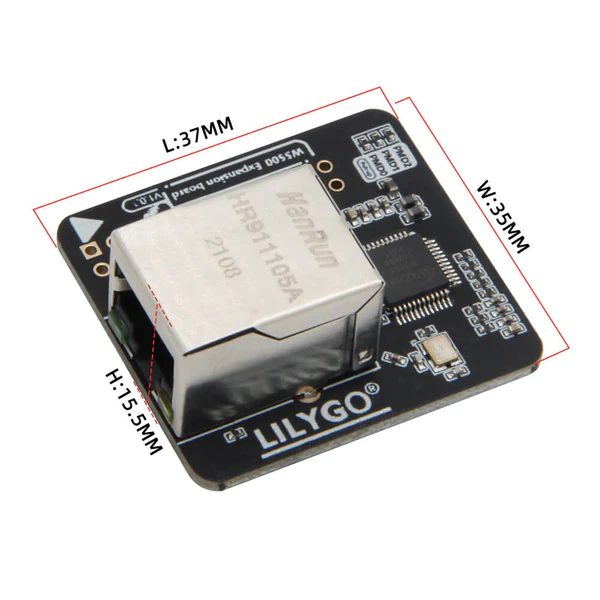

Dimension X [mm]	37
Dimension Y [mm]	35
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI Ethernet
Ethernet chip/SoC	W5500
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)

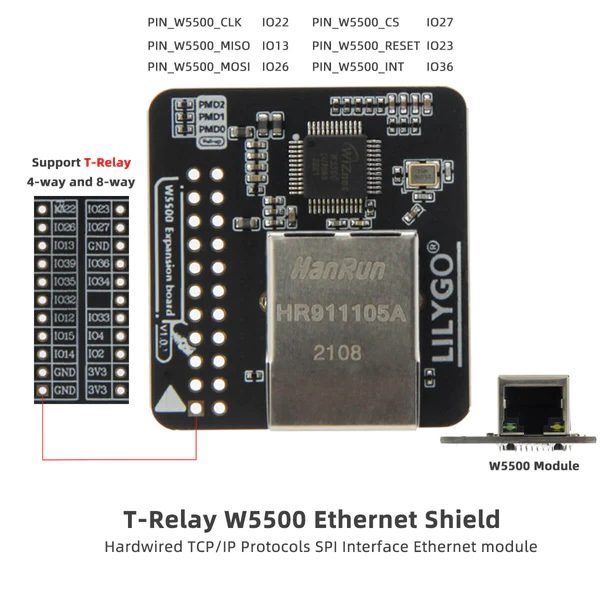

IO-connector(s)	Through hole solder pin(s) (2.54mm) RJ45 female
Package contents

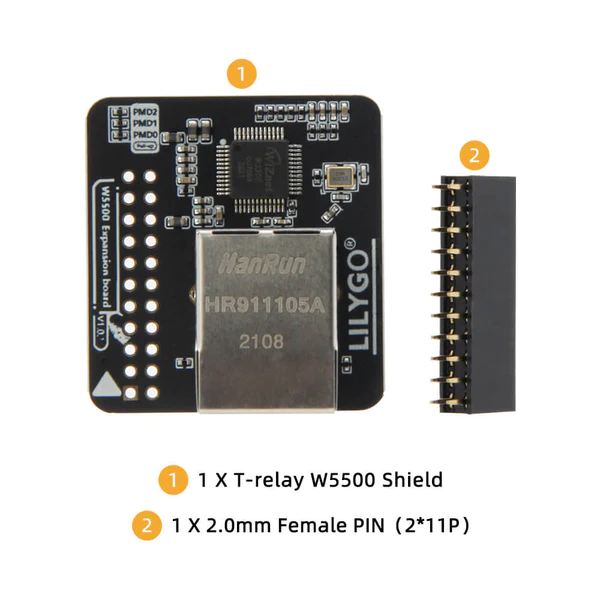

Package contents	1x T-Relay W5500 shield 1x Pinheader female 2x11p
