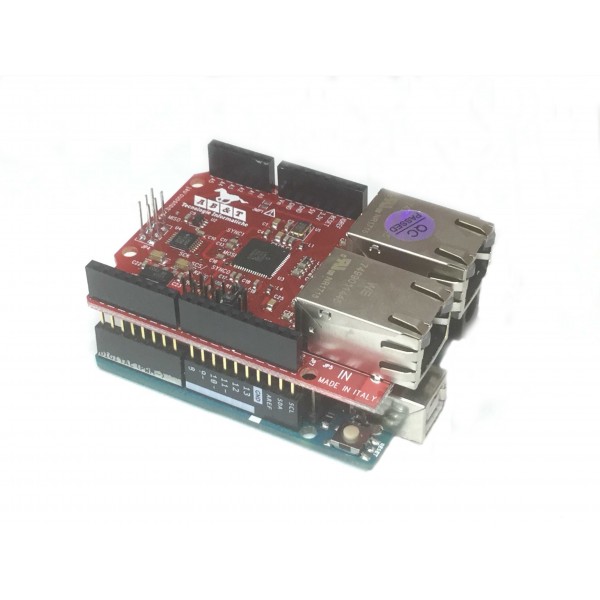

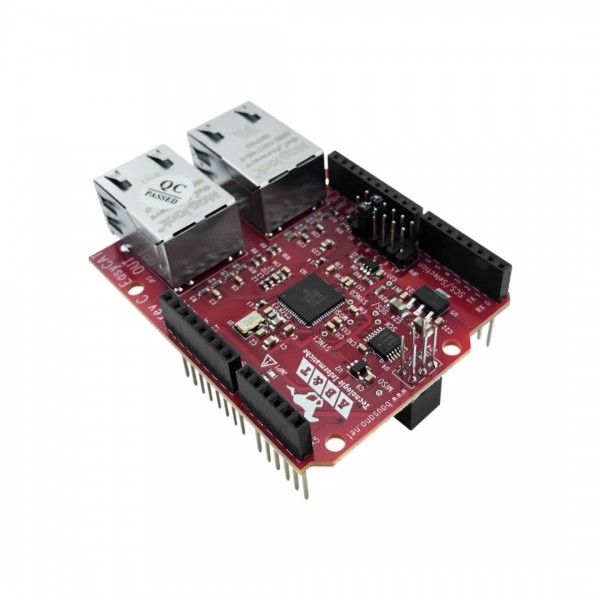

EasyCAT EtherCat Shield - for Arduino

The EasyCat Shield is an EtherCat shield that can be used to make an EtherCat Slave from an Arduino. EtherCat is a modification of the well-known Ethernet protocol and offers the possibility to connect a bus of devices. Watch this video for a short explanation about EtherCat. The EasyCat communicates with the Arduino via SPI. For this there are extra long pins on the EasyCat shield that correspond to the location of the SPI male pins of the Arduino. Additional cables will therefore not be necessary. When using a microcontroller that does not have a special SPI connection, it is possible to use the EasyCat pin 11, 12 and 13 for SPI. You can find more information here.

Specifications:

• Supply voltage: 5V DC (to be received from the Arduino board)
• EtherCat Slave Controller: LAN9252 Microchip
• Connection speed: 100 Mbps
• 1x Ethernet Input connection
• 1x Ethernet Output connection (cables not included)
• Suitable for Arduino (and compatible variants):
  • Uno
  • Mega
  • Due

Package contents:

• 1x EasyCat Shield

See the following page for more information: EasyCat-Shield

Note: The EasyCat Shield can only make an EtherCat Slave from the Arduino. See in the link above how you can turn your PC or Arduino into an EtherCat Master.

Note: Arduino is not included.
