USB-C 2.0 Male to Soldering Pads Adapter V2

Availability: Directly available from warehouse in Eindhoven
SKU: 006183

Based on 0 review(s) - Write a review

€0.50

Ex Tax: €0.41

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

Description
Reviews

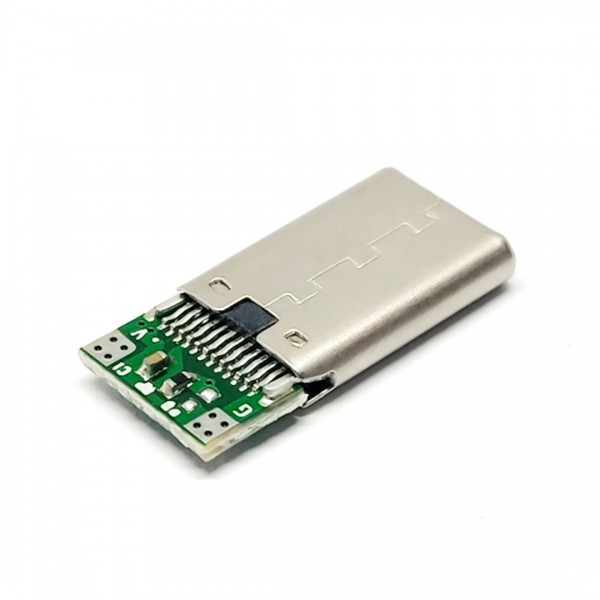

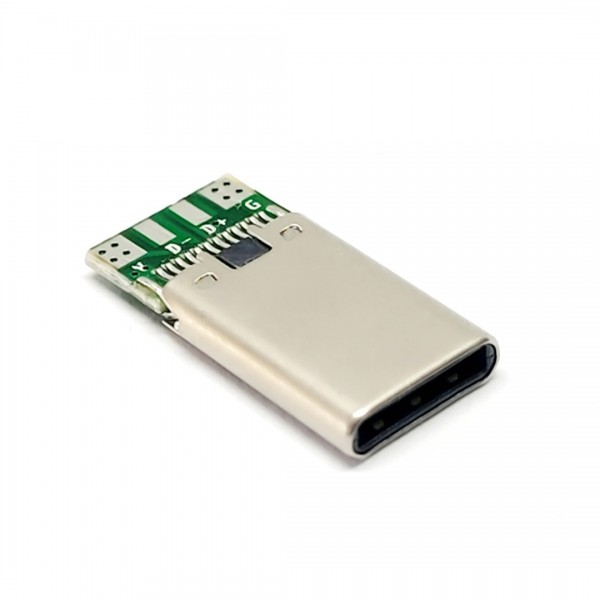

A USB-C to Soldering pads adapter.

Note: The connector module has a built-in 56kΩ resistor between Vbus and CC. This will force the current to flow from the soldering pads to the USB, and not the other way around. This makes the connector suitable, for example, for making a USB-A to USB-C cable or from a separate 5V voltage source to USB-C. The connector is not suitable for making USB-C to USB-C cables.

Please login or register to review

Reviews Over USB-C 2.0 Male to Soldering Pads Adapter V2

Average Rating:

This product has 0 review(s) in total.

Tags: USB-C 2.0 Male to Soldering Pads Adapter V2 , USBCM-SMD-V2 , USB

Specifications

General
Brand	No brand
General physical appearance
Main color	Green
Weight [g]	1

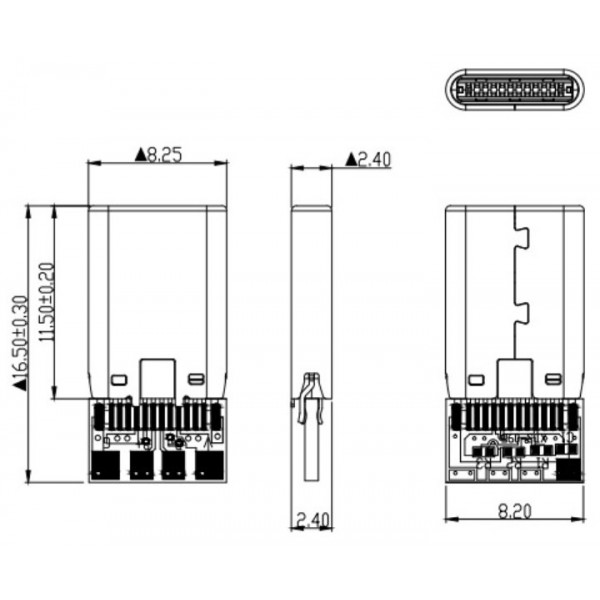

Dimension X [mm]	17 (including USB connector)
Dimension Y [mm]	8.3
Dimension Z [mm]	2.4
Form factor	Module (general)
Communication
USB classification	USB 2.0
Connectors
Connector type(s)	USB-C male Wire solder pin(s)/pad(s)
Number of conductors/pins	6
Locking mechanism	Click
Package contents
Package contents	1x USB-C to soldering pads adapter
