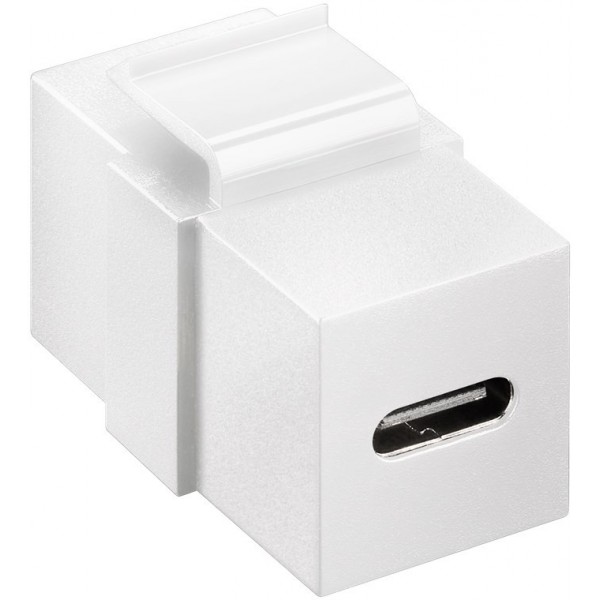

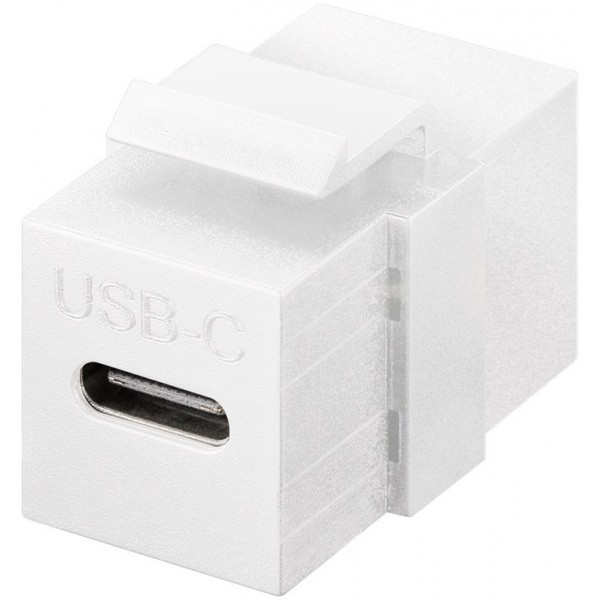

Goobay 61262 USB 3.2 Keystone Module - USB-C - White
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005831
€4.00
Ex Tax: €3.31
Your shopping cart is empty!
This USB keystone module is for two-sided installation of USB-C cables and supports fast data and video transfer.
This product has 0 review(s) in total.
| General | |
| Brand | Goobay |
| Manufacturer model/SKU | 61262 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 45 |
| General physical appearance | |
| Main color | White |
| Weight [g] | 6 |
| Dimension X [mm] | 29 |
| Dimension Y [mm] | 22 |
| Dimension Z [mm] | 17 |
| Mounting options | Click |
| Form factor | Module (general) Keystone 16x14.5mm |
| General electrical properties | |
| Maximum voltage [V DC] | 20 |
| Maximum current [A] | 5 |
| Communication | |
| USB classification | USB 3.2 Gen 2x1 |
| Maximum USB transfer speed [Gbit/s] | 10 |
| Connectors | |
| Connector type(s) | USB-C female |
| Orientation | Straight |
| Locking mechanism | Click |
| Enclosure | |
| Material | ABS |
| Package contents | |
| Package contents | 1x Keystone Module |
