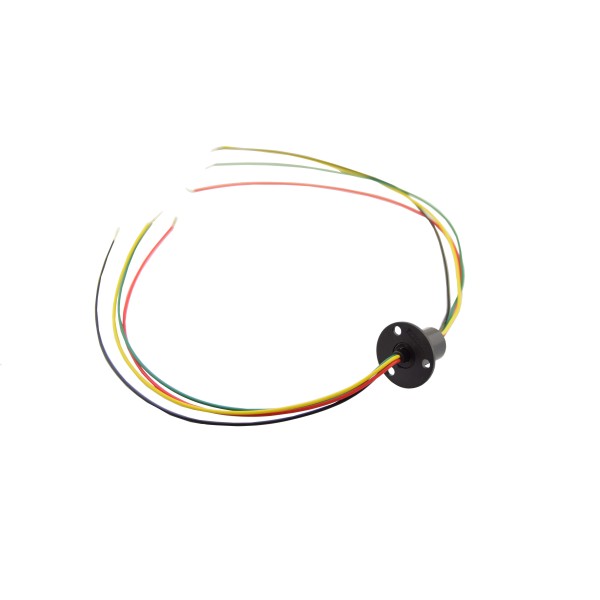

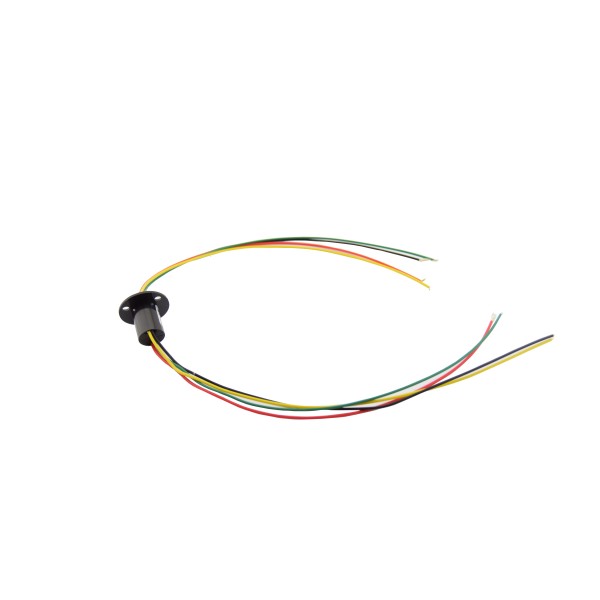

Name: Slip Ring with Flange - 12.5mm Diameter - 4 Wires - 5A - SRING-12.5MM-4W-5A
SKU: 003139
Price: 13.75 EUR
Availability: OutOfStock

Slip Ring with Flange - 12.5mm Diameter - 4 Wires - 5A

2-4 Weeks

Slip Ring with Flange - 12.5mm Diameter - 4 Wires - 5A

Availability: 2-4 Weeks
SKU: 003139

Based on 0 review(s) - Write a review

€13.75

Ex Tax: €11.36

10 or more €13.50

20 or more €13.25

50 or more €13.00

100 or more €12.75

Qty

Add to Cart

Add to wishlist

Not in stock

This slip ring makes it possible to connect cables to a rotating module without tangling the cables.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Slip Ring with Flange - 12.5mm Diameter - 4 Wires - 5A

Average Rating:

This product has 0 review(s) in total.

Datasheet: 003139_Senring-Slip-Ring-12.5mm-Outer-Diameter.pdf

Tags: Connectors , Slip Rings , Slip Ring with Flange - 12.5mm Diameter - 4 Wires - 5A , 003139 , No brand

Specifications

General
Brand	No brand

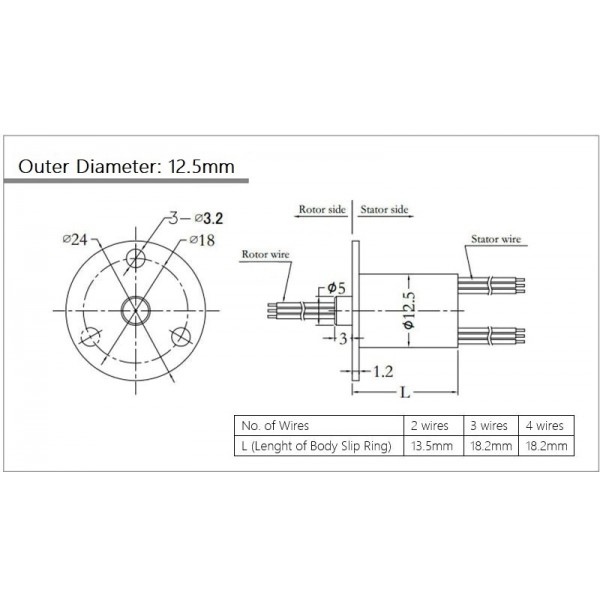

General physical appearance
Main color	Black
Weight [g]	12
Dimension X [mm]	24
Dimension Y [mm]	24
Dimension Z [mm]	18
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Recommended mounting dimensions [mm]	ø13
Form factor	Wire/cable
General electrical properties
Maximum voltage [V AC]	240
Maximum voltage [V DC]	240
Maximum current [A]	5
Bearing
Maximum rotational speed [rpm]	250
Connectors
Connector type(s)	Loose wire
Number of conductors/pins	4
Wire/cable
Core structure	Stranded
Wire/cable length [m]	0.2 (both sides)
Enclosure
Material	ABS
Package contents
Package contents	1x Slip Ring with Flange - 12.5mm Diameter - 4 Wires - 5A
