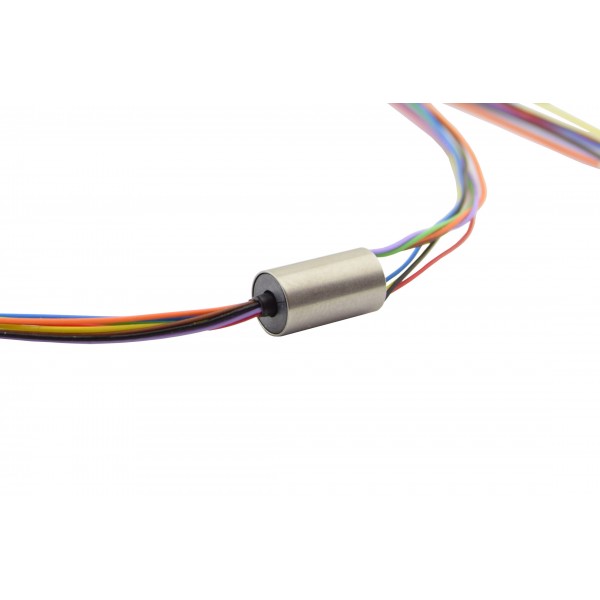

Slip Ring - 6.5mm Diameter - 8 Wires - 1A
- Availability: Directly available from warehouse in Eindhoven
- SKU: 003142
€9.75
Ex Tax: €8.06
Your shopping cart is empty!
This slip ring makes it possible to connect cables to a rotating module without tangling the cables.
Check the tab "Downloads" for more information and/or downloads.
| General | |
| Brand | No brand |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 4 |
| Dimension X [mm] | 6.5 |
| Dimension Y [mm] | 6.5 |
| Dimension Z [mm] | 12 |
| Recommended mounting dimensions [mm] | ø7 |
| Form factor | Wire/cable |
| General electrical properties | |
| Maximum voltage [V AC] | 240 |
| Maximum voltage [V DC] | 240 |
| Maximum current [A] | 1 |
| Bearing | |
| Maximum rotational speed [rpm] | 150 |
| Connectors | |
| Connector type(s) | Loose wire |
| Number of conductors/pins | 8 |
| Wire/cable | |
| Core structure | Stranded |
| Wire/cable length [m] | 0.2 (both sides) |
| Enclosure | |
| Material | ABS |
| Package contents | |
| Package contents | 1x Slip Ring - 6.5mm Diameter - 8 Wires - 1A |
