Name: Slip Ring - 6.5mm Diameter - 4 Wires - 1A - SRING-6.5MM-4W-1A
SKU: 003140
Price: 7 EUR
Availability: InStock

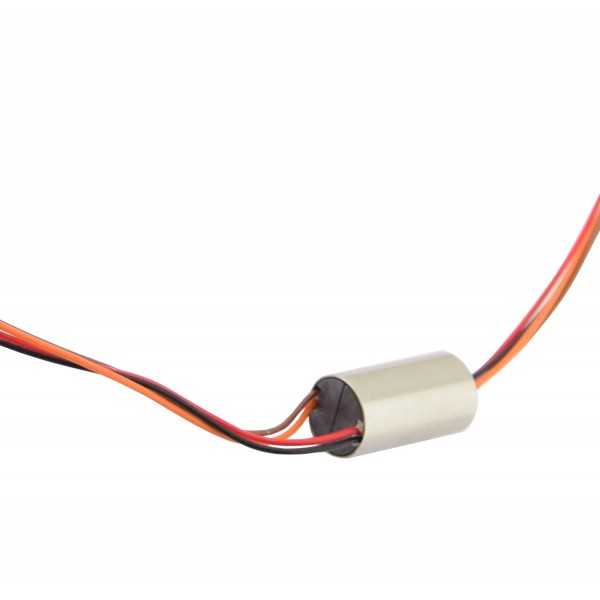

Slip Ring - 6.5mm Diameter - 4 Wires - 1A

Based on 0 review(s) - Write a review

€7.00

Ex Tax: €5.79

10 or more €6.80

20 or more €6.70

50 or more €6.60

100 or more €6.50

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

This slip ring makes it possible to connect cables to a rotating module without tangling the cables.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Slip Ring - 6.5mm Diameter - 4 Wires - 1A , SRING-6.5MM-4W-1A , Slip Rings

General
Brand	No brand
General physical appearance
Main color	Gray/silver
Weight [g]	3

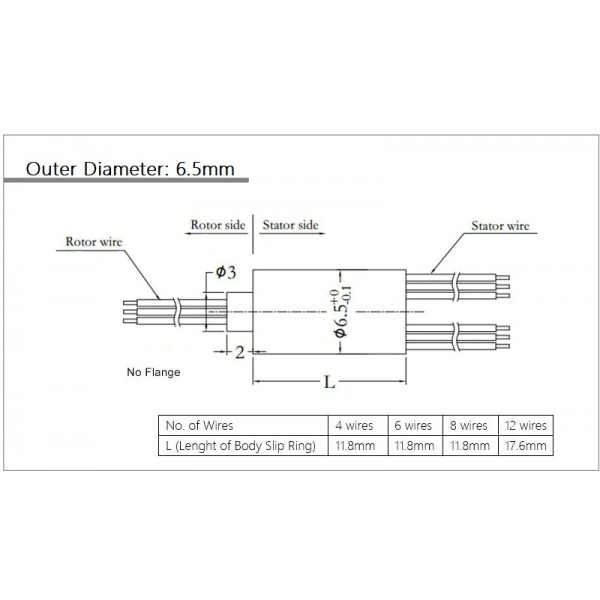

Dimension X [mm]	6.5
Dimension Y [mm]	6.5
Dimension Z [mm]	12
Recommended mounting dimensions [mm]	ø7
Form factor	Wire/cable
General electrical properties
Maximum voltage [V AC]	240
Maximum voltage [V DC]	240
Maximum current [A]	1
Bearing
Maximum rotational speed [rpm]	150
Connectors
Connector type(s)	Loose wire
Number of conductors/pins	4
Wire/cable
Core structure	Stranded
Wire/cable length [m]	0.2 (both sides)
Enclosure
Material	ABS
Package contents
Package contents	1x Slip Ring - 6.5mm Diameter - 4 Wires - 1A
