Removable 2 Pin Screw Terminal Connector

Availability: Directly available from warehouse in Eindhoven
SKU: 002078

Based on 0 review(s) - Write a review

€1.00

Ex Tax: €0.83

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

Description
Reviews

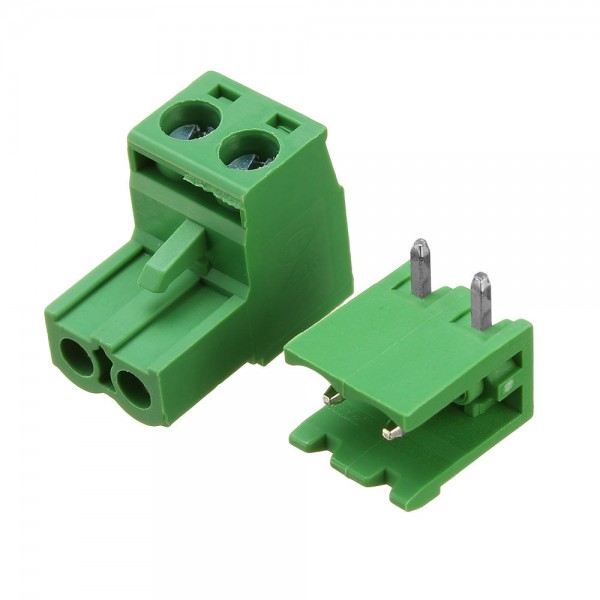

This screw terminal can be removed with an extra plug. This makes it easy to switch between different terminals without having to unscrew the terminals.

Please login or register to review

Reviews Over Removable 2 Pin Screw Terminal Connector

Average Rating:

This product has 0 review(s) in total.

Tags: Removable 2 Pin Screw Terminal Connector , 2PTERMPLUG , Screw Terminals

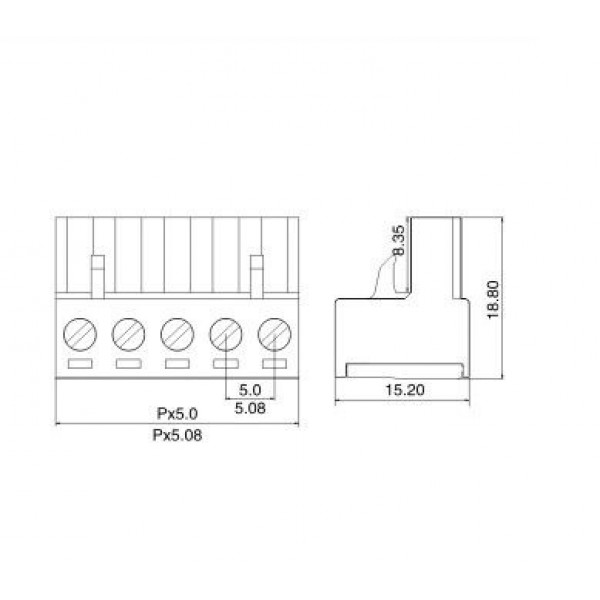

Specifications

General
Brand	No brand
General physical appearance
Main color	Green
Weight [g]	5
Dimension X [mm]	10
Dimension Y [mm]	15
Dimension Z [mm]	19
Mounting options	THT
Form factor	Set/kit
Experiment PCB friendly	No
Connectors
Connector type(s)	Screw terminal Solder pin(s) (THT) Detachable block male (2EDG-5.08) Detachable block female (2EDG-5.08)
Number of conductors/pins	2
Orientation	Straight Right-angled
Locking mechanism	Screw Clamp
Connector system	Wire-to-board
Pin shape	Square
Connector/pin width [mm]	1.0
Pin distance [mm]	5.08
Pin length (PCB/short side) [mm]	3.8
Package contents
Package contents	1x Screw terminal block connector 1x Terminal block for detachable screw terminal
