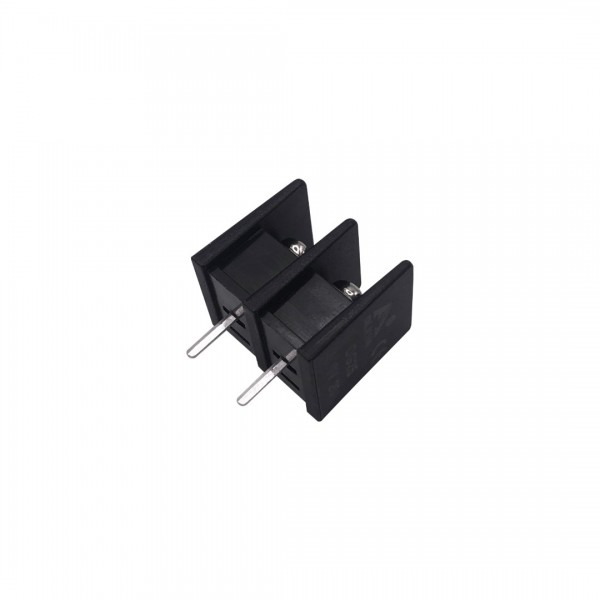

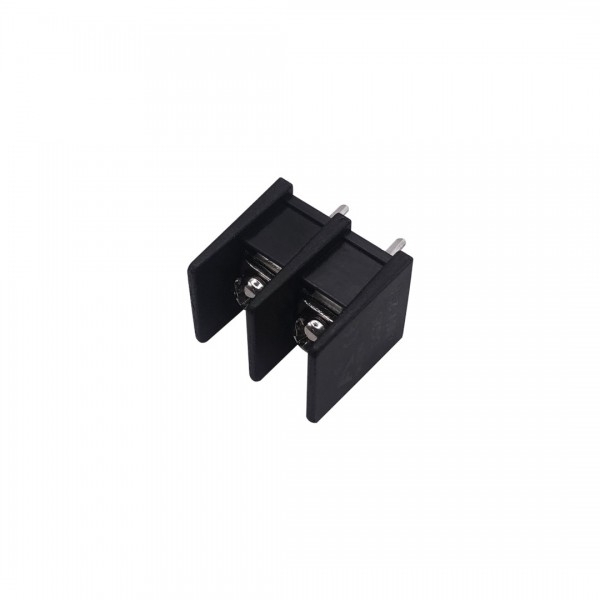

Barrier Strip Screw Terminal - 2p - 7.62mm

Based on 0 review(s) - Write a review

€0.75

Ex Tax: €0.62

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

A large screw terminal suitable for M3 fork and ring cable lugs, or simply for loose wires.

Please login or register to review

This product has 0 review(s) in total.

Tags: Barrier Strip Screw Terminal - 2p - 7.62mm , SCREWT-7.62MM-2P , Screw Terminals

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	4
Dimension X [mm]	17
Dimension Y [mm]	14
Dimension Z [mm]	15
Water and dust protection	None
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	No
General electrical properties
Maximum voltage [V AC]	300
Maximum voltage [V DC]	300
Maximum current [A]	20
Connectors
Connector type(s)	Solder pin(s) (THT) Screw clamp terminal
Number of conductors/pins	2
Orientation	Right-angled
Locking mechanism	Screw
Screw(hole) size	M3
Connector system	Wire-to-board
Pin shape	Rectangular
Connector/pin width [mm]	1.1

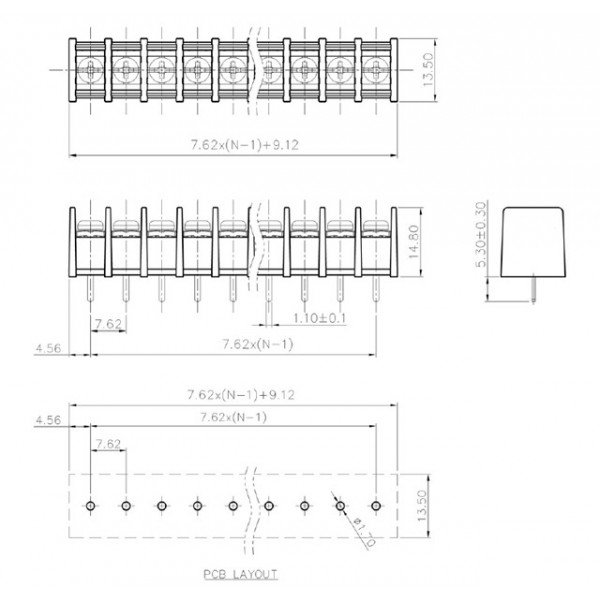

Pin distance [mm]	7.62
Pin length (PCB/short side) [mm]	5.3
Package contents
Package contents	1x Barrier Strip Schroefterminal - 2p - 7.62mm
