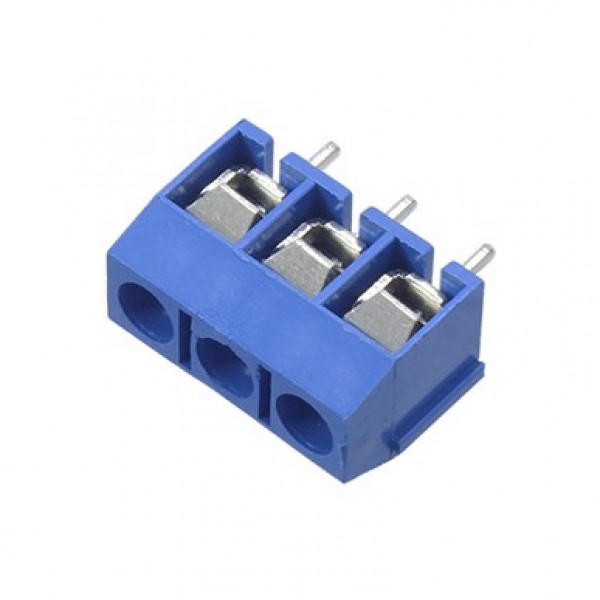

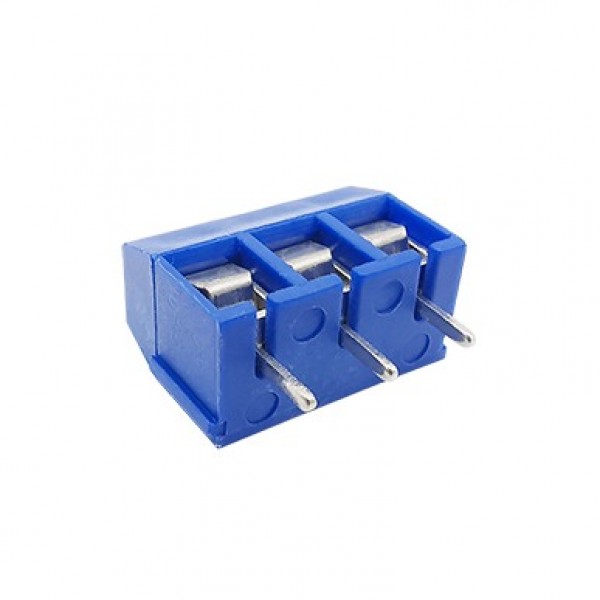

3 Pin Screw Terminal Block Connector 5mm Distance- Blue

Based on 0 review(s) - Write a review

€0.70

Ex Tax: €0.58

10 or more €0.65

20 or more €0.60

50 or more €0.55

100 or more €0.50

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

A somewhat larger screw terminal that is suitable for relatively thick cables.

Please login or register to review

This product has 0 review(s) in total.

Tags: 3 Pin Screw Terminal Block Connector 5mm Distance- Blue , 3PTERMB , Screw Terminals

General
Brand	No brand
Minimum operating temperature [°C]	-30
Maximum operating temperature [°C]	120 (Soldering temperature 250°C for up to 5 seconds)
General physical appearance
Main color	Blue
Weight [g]	3
Dimension X [mm]	7.6
Dimension Y [mm]	10
Dimension Z [mm]	16
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
General electrical properties
Maximum voltage [V AC]	250
Maximum voltage [V DC]	250
Maximum current [A]	16
Connectors
Connector type(s)	Screw terminal Solder pin(s) (THT)
Number of conductors/pins	3
Orientation	Right-angled
Locking mechanism	Screw
Connector system	Wire-to-board
Pin shape	Round
Connector/pin width [mm]	1.0
Pin distance [mm]	5.00
Pin length (PCB/short side) [mm]	3.7
Minimum wire thickness [mm²]	0.326
Maximum wire thickness [mm²]	2.08
Package contents
Package contents	1x Screw terminal block connector
