Name: 3 Pin Screw Terminal Block Connector 2.54mm Distance - 3P2.54MMTERM
SKU: 001244
Price: 0.4 EUR
Availability: InStock

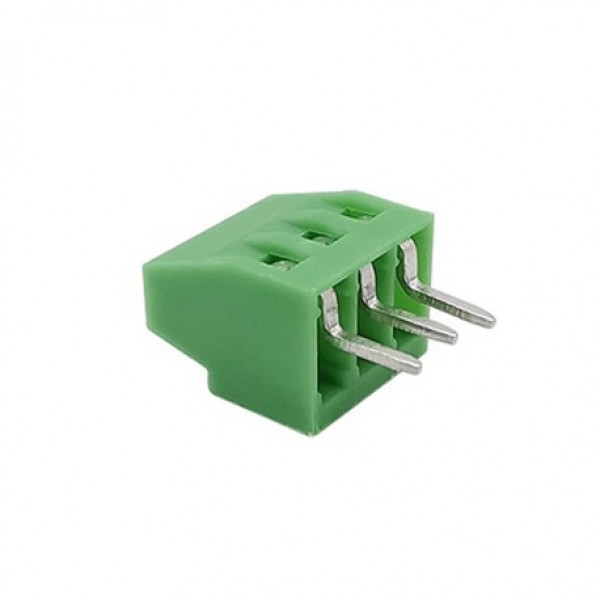

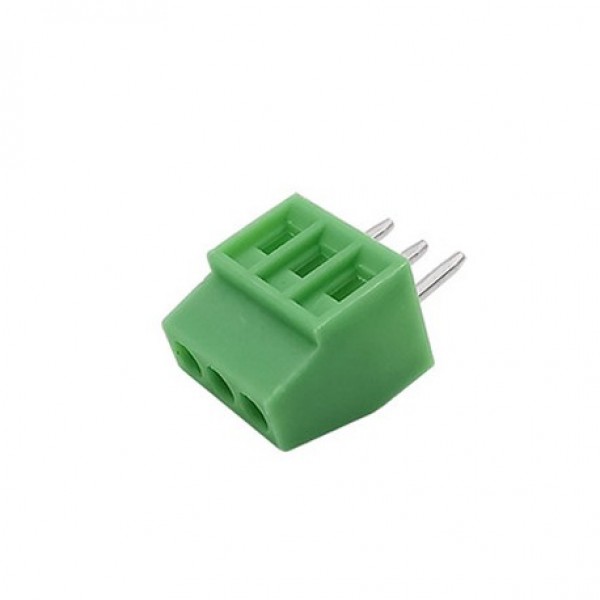

3 Pin Screw Terminal Block Connector 2.54mm Distance

Based on 0 review(s) - Write a review

€0.40

Ex Tax: €0.33

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

This small pin terminal has a pin spacing of 2.54mm and is therefore very suitable for most of the experimental circuit boards that we sell.

Please login or register to review

This product has 0 review(s) in total.

Tags: Connectors , Screw Terminals , 3 Pin Screw Terminal Block Connector 2.54mm Distance , 001244 , No brand

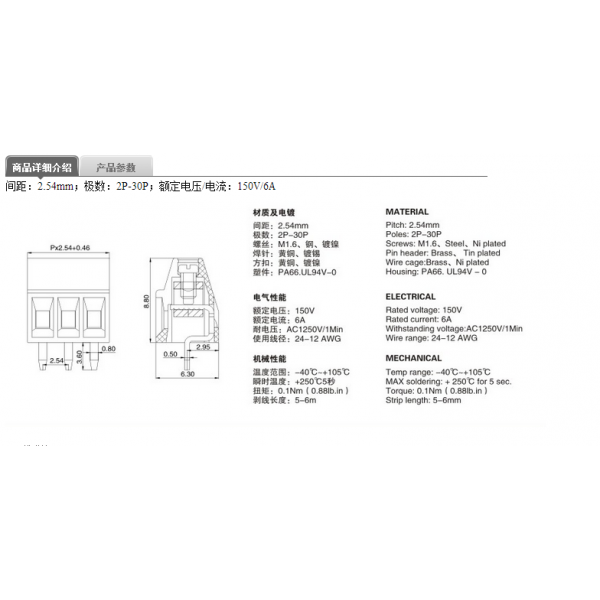

General
Brand	No brand
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	105
General physical appearance
Main color	Green
Weight [g]	1
Dimension X [mm]	8.1
Dimension Y [mm]	6.3
Dimension Z [mm]	8.8
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
General electrical properties
Maximum voltage [V AC]	150
Maximum voltage [V DC]	150
Maximum current [A]	6
Connectors
Connector type(s)	Screw terminal Solder pin(s) (THT)
Number of conductors/pins	3
Orientation	Right-angled
Locking mechanism	Screw
Connector system	Wire-to-board
Pin shape	Rectangular
Connector/pin width [mm]	0.8
Pin distance [mm]	2.54
Connector thickness [mm]	0.5
Pin length (PCB/short side) [mm]	3.6
Minimum wire thickness [mm²]	0.326
Maximum wire thickness [mm²]	1
Package contents
Package contents	1x Screw terminal block connector
