Name: 2 Pin Screw Terminal Block Connector 2.54mm Distance - 2P2.54MMTERM
SKU: 000889
Price: 0.3 EUR
Availability: OutOfStock

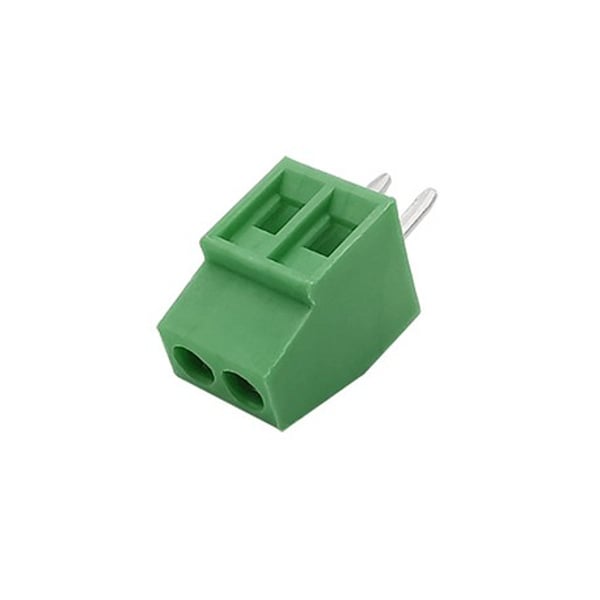

2 Pin Screw Terminal Block Connector 2.54mm Distance

2-4 Weeks

2 Pin Screw Terminal Block Connector 2.54mm Distance

Availability: 2-4 Weeks
SKU: 000889

Based on 0 review(s) - Write a review

€0.30

Ex Tax: €0.25

Qty

Add to Cart

Add to wishlist

Not in stock

Description
Reviews (0)

This small pin terminal has a pin spacing of 2.54mm and is therefore very suitable for most of the experimental circuit boards that we sell.

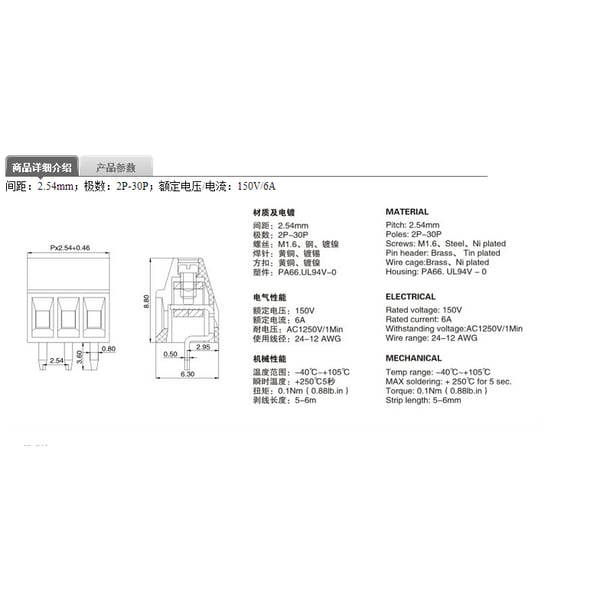

See the illustrations for the specifications.

Please login or register to review

Reviews Over 2 Pin Screw Terminal Block Connector 2.54mm Distance

Average Rating:

This product has 0 review(s) in total.

Tags: Connectors , Screw Terminals , 2 Pin Screw Terminal Block Connector 2.54mm Distance , 000889 , No brand

Specifications

General
Brand	No brand
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	105
General physical appearance
Main color	Green
Weight [g]	1
Dimension X [mm]	5.5
Dimension Y [mm]	6.3
Dimension Z [mm]	8.8
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
General electrical properties
Maximum voltage [V AC]	150
Maximum voltage [V DC]	150
Maximum current [A]	6
Connectors
Connector type(s)	Screw terminal Solder pin(s) (THT)
Number of conductors/pins	2
Orientation	Right-angled
Locking mechanism	Screw
Connector system	Wire-to-board
Pin shape	Rectangular
Connector/pin width [mm]	0.8
Pin distance [mm]	2.54
Connector thickness [mm]	0.5
Pin length (PCB/short side) [mm]	3.6
Minimum wire thickness [mm²]	0.326
Maximum wire thickness [mm²]	1
Package contents
Package contents	1x Screw terminal block connector
