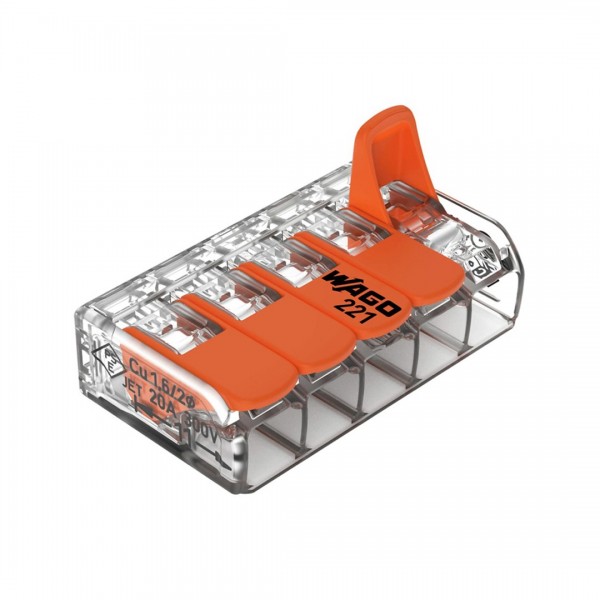

Wago Push-in Wire Connector - 5-way

Based on 0 review(s) - Write a review

€1.25

Ex Tax: €1.03

20 or more €1.20

50 or more €1.15

100 or more €1.10

200 or more €1.05

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This push-in wire connector offers an easy way to connect wires together. No tools are required due to the clamps.

Please login or register to review

This product has 0 review(s) in total.

Tags: Wago Push-in Wire Connector - 5-way , WAGO-221-415 , Push-in Wire Connectors

General
Brand	Wago
Manufacturer model/SKU	221-415
Maximum operating temperature [°C]	85
General physical appearance
Main color	Colorless/transparent
Weight [g]	4
Dimension X [mm]	30
Dimension Y [mm]	19
Dimension Z [mm]	8.6
Form factor	Individual component
General electrical properties
Maximum voltage [V AC]	450
Maximum voltage [V DC]	450
Maximum current [A]	32
Connectors
Connector type(s)	Clamp terminal
Number of conductors/pins	5 (connected to each other)
Orientation	Straight
Locking mechanism	Clamp
Connector system	Wire-to-wire
Pin insertion length [mm]	11
Minimum wire thickness [mm²]	0.2
Maximum wire thickness [mm²]	4.0
Package contents
Package contents	1x Push-in wire connector
