Wago Push-in Wire Connector - 2-way

Based on 0 review(s) - Write a review

€0.60

Ex Tax: €0.50

20 or more €0.58

50 or more €0.56

100 or more €0.54

200 or more €0.52

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

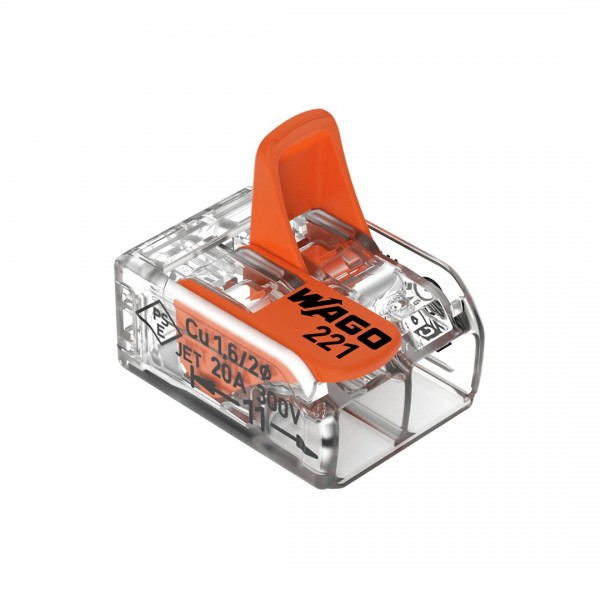

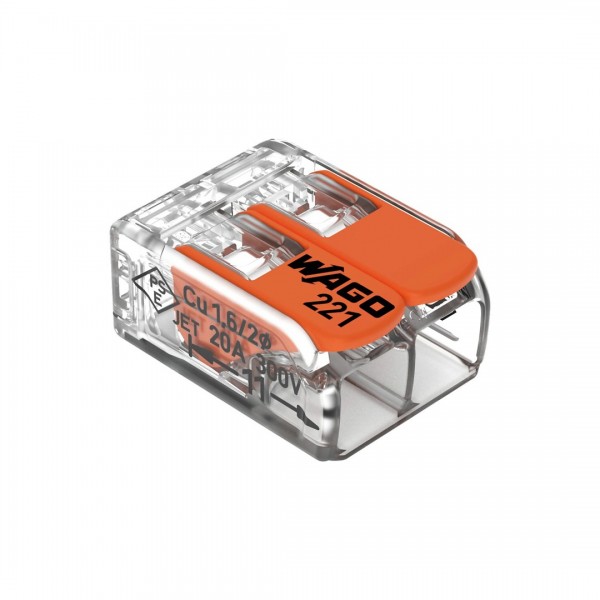

This push-in wire connector offers an easy way to connect wires together. No tools are required due to the clamps.

Please login or register to review

This product has 0 review(s) in total.

Tags: Wago Push-in Wire Connector - 2-way , WAGO-221-412 , Push-in Wire Connectors

General
Brand	Wago
Manufacturer model/SKU	221-412
Maximum operating temperature [°C]	85
General physical appearance
Main color	Colorless/transparent
Weight [g]	2
Dimension X [mm]	13
Dimension Y [mm]	19
Dimension Z [mm]	8.6
Form factor	Individual component
General electrical properties
Maximum voltage [V AC]	450
Maximum voltage [V DC]	450
Maximum current [A]	32
Connectors
Connector type(s)	Clamp terminal
Number of conductors/pins	2 (connected to each other)
Orientation	Straight
Locking mechanism	Clamp
Connector system	Wire-to-wire
Pin insertion length [mm]	11
Minimum wire thickness [mm²]	0.2
Maximum wire thickness [mm²]	4.0
Package contents
Package contents	1x Push-in wire connector
