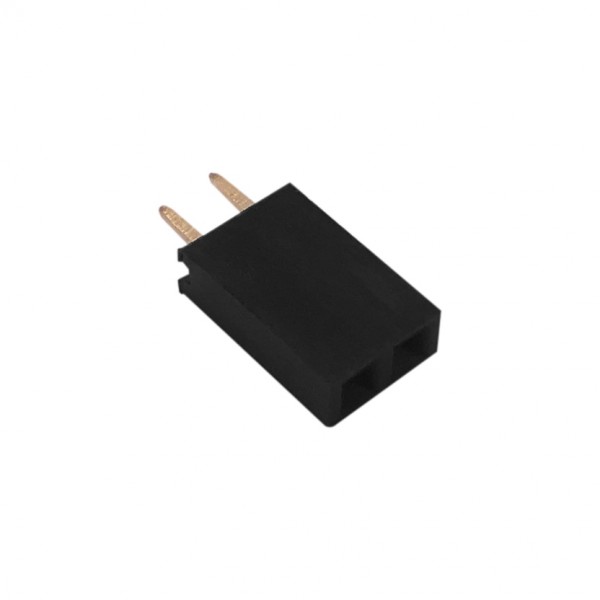

2 Pins header Female

2 Pins header Female
2 Pins header Female
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 000498
€0.10
Ex Tax: €0.08

A standard female pin header suitable for plugging in male headers or male DuPont cables

Please login or register to review

Reviews Over 2 Pins header Female

This product has 0 review(s) in total.

Specifications

General
Brand No brand
General physical appearance
Main color Black
Weight [g] 1
Dimension X [mm] 5.5
Dimension Y [mm] 2.4
Dimension Z [mm] 8.5
Mounting options THT
Form factor Individual component
Experiment PCB friendly Yes
Connectors
Connector type(s) Pin header female (2.54mm)
Solder pin(s) (THT)
Number of conductors/pins 2
Number of pin rows 1
Orientation Straight
Locking mechanism None
Pin shape Rectangular
Connector/pin width [mm] 0.65
Pin distance [mm] 2.54
Pin length (PCB/short side) [mm] 3
Pin insertion length [mm] 6
Package contents
Package contents 1x Pin header 2p Female
