Name: JST-XH 2p Compatible PCB Connector Male - JST-XHPCB2PMALE
SKU: 003357
Price: 0.1 EUR
Availability: InStock

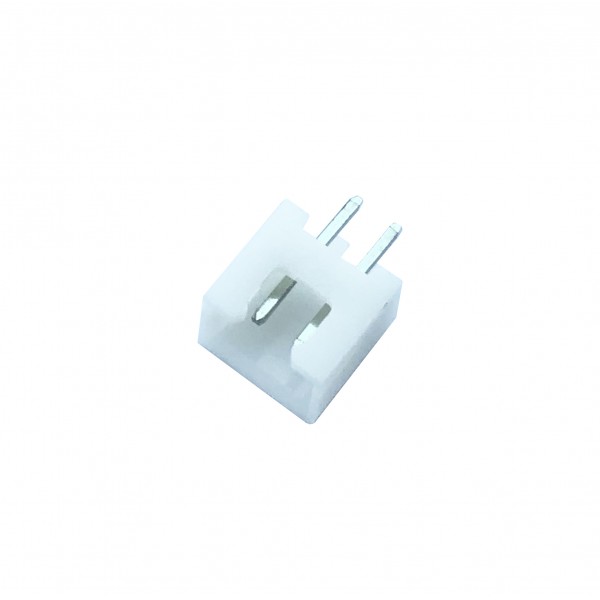

JST-XH 2p Compatible PCB Connector Male

Based on 0 review(s) - Write a review

€0.10

Ex Tax: €0.08

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

Een JST-XH compatible connector voor op een printplaat.

Zie de datasheet onder de tab "Downloads" voor meer informatie (Type 1).

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Mechanical design (dimensions): 003357_jst-xh.pdf

Tags: JST-XH 2p Compatible PCB Connector Male , JST-XHPCB2PMALE , JST Compatible

General
Brand	No brand
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	85
General physical appearance
Main color	White
Weight [g]	1
Dimension X [mm]	7.5
Dimension Y [mm]	7
Dimension Z [mm]	5.9
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
General electrical properties
Maximum voltage [V AC]	250
Maximum voltage [V DC]	250
Maximum current [A]	3
Connectors
Connector type(s)	JST-XH (compatible) male Solder pin(s) (THT)
Number of conductors/pins	2
Number of pin rows	1
Orientation	Straight
Locking mechanism	Click
Pin shape	Square
Connector/pin width [mm]	0.64
Pin distance [mm]	2.50
Pin length (PCB/short side) [mm]	3.4
Package contents
Package contents	1x JST-XH 2p Compatible PCB Connector Male
