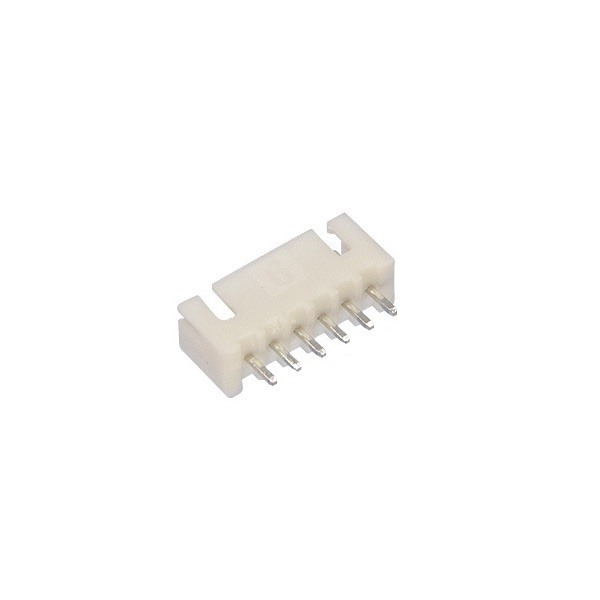

JST-XH 6p Compatible PCB Connector Male
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004444
€0.20
Ex Tax: €0.17
Your shopping cart is empty!
A JST-XH compatible connector for a printed circuit board.
Check the tab "Downloads" for more information and/or downloads.
Mechanical design (dimensions): 004444_jst-xh.pdf
General | |
Brand | No brand |
Minimum operating temperature [°C] | -25 |
Maximum operating temperature [°C] | 85 |
General physical appearance | |
Main color | White |
Weight [g] | 1 |
Dimension X [mm] | 18 |
Dimension Y [mm] | 7 |
Dimension Z [mm] | 5.9 |
Mounting options | THT |
Form factor | Individual component |
Experiment PCB friendly | Yes |
General electrical properties | |
Maximum voltage [V AC] | 250 |
Maximum voltage [V DC] | 250 |
Maximum current [A] | 3 |
Connectors | |
Connector type(s) | JST-XH (compatible) male Solder pin(s) (THT) |
Number of conductors/pins | 6 |
Number of pin rows | 1 |
Orientation | Straight |
Locking mechanism | Click |
Pin shape | Square |
Connector/pin width [mm] | 0.64 |
Pin distance [mm] | 2.50 |
Pin length (PCB/short side) [mm] | 3.4 |
Package contents | |
Package contents | 1x JST-XH compatible PCB connector |
