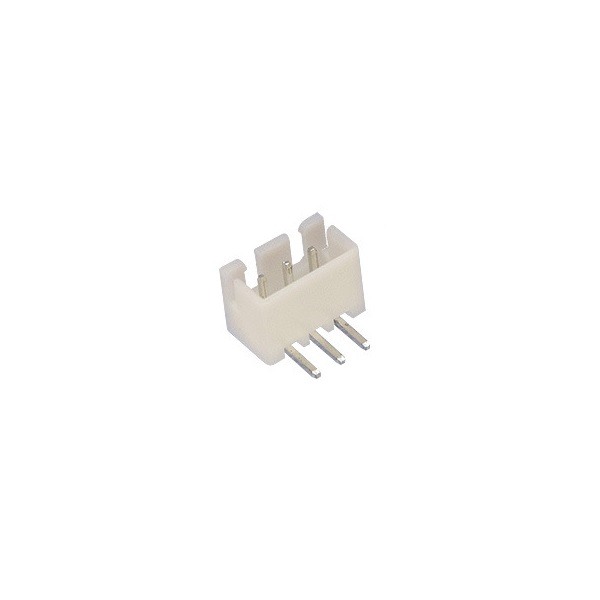

JST-XH 3p Compatible PCB Connector Male - 90°

JST-XH 3p Compatible PCB Connector Male - 90°
JST-XH 3p Compatible PCB Connector Male - 90°
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004437
Based on 0 review(s) - Write a review
€0.12
Ex Tax: €0.10
Add to Cart
Add to wishlist

A JST-XH compatible connector for a printed circuit board.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over JST-XH 3p Compatible PCB Connector Male - 90°

This product has 0 review(s) in total.

Mechanical design (dimensions): 004437_jst-xh-90-degrees.pdf

Tags: JST-XH 3p Compatible PCB Connector Male - 90° , JST-XHPCB3PMALE90DEG , JST Compatible

Specifications

General
Brand No brand
Minimum operating temperature [°C] -25
Maximum operating temperature [°C] 85
General physical appearance
Main color White
Weight [g] 1
Dimension X [mm] 10
Dimension Y [mm] 7
Dimension Z [mm] 5.9
Mounting options THT
Form factor Individual component
Experiment PCB friendly Yes
General electrical properties
Maximum voltage [V AC] 250
Maximum voltage [V DC] 250
Maximum current [A] 3
Connectors
Connector type(s) JST-XH (compatible) male
Solder pin(s) (THT)
Number of conductors/pins 3
Number of pin rows 1
Orientation Right-angled
Locking mechanism Click
Pin shape Square
Connector/pin width [mm] 0.64
Pin distance [mm] 2.50
Pin length (PCB/short side) [mm] 3.4
Package contents
Package contents 1x JST-XH 3p Compatible PCB Connector Male - 90°
