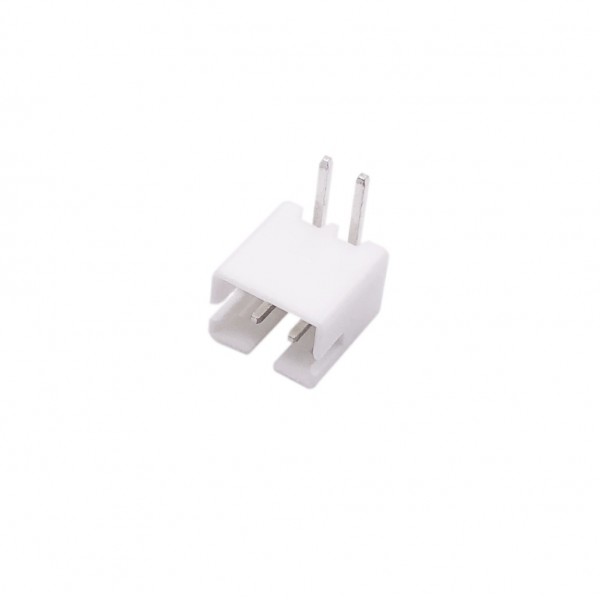

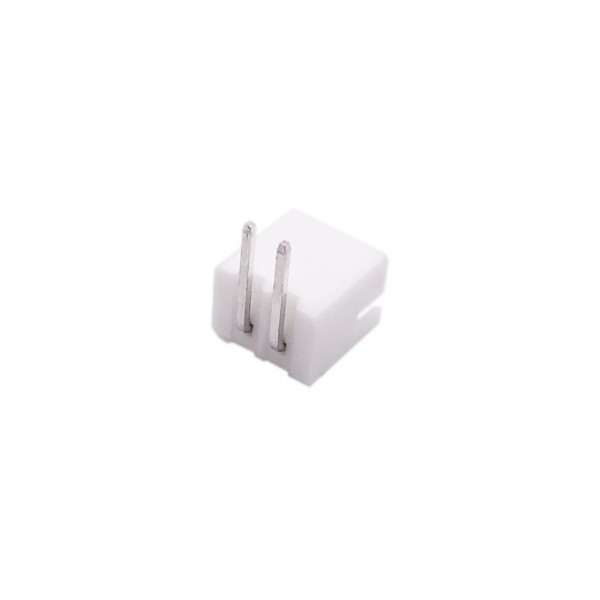

JST-PH 2p Compatible PCB Connector Male - 90°
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004216
€0.10
Ex Tax: €0.08
Your shopping cart is empty!
A JST-PH compatible connector for a printed circuit board.
| General | |
| Brand | No brand |
| General physical appearance | |
| Main color | White |
| Weight [g] | 1 |
| Dimension X [mm] | 6 |
| Dimension Y [mm] | 6 |
| Dimension Z [mm] | 5 |
| Water and dust protection | None |
| Mounting options | THT |
| Form factor | Individual component |
| Experiment PCB friendly | No |
| General electrical properties | |
| Maximum voltage [V AC] | 100 |
| Maximum voltage [V DC] | 100 |
| Maximum current [A] | 2 |
| Connectors | |
| Connector type(s) | Solder pin(s) (THT) JST-PH (compatible) male |
| Number of conductors/pins | 2 |
| Orientation | Right-angled |
| Locking mechanism | Click |
| Connector system | Wire-to-board |
| Pin shape | Square |
| Connector/pin width [mm] | 0.5 |
| Pin distance [mm] | 2.00 |
| Pin length (PCB/short side) [mm] | 3 |
| Package contents | |
| Package contents | 1x JST-PH 2p Compatible PCB Connector Male - 90° |
