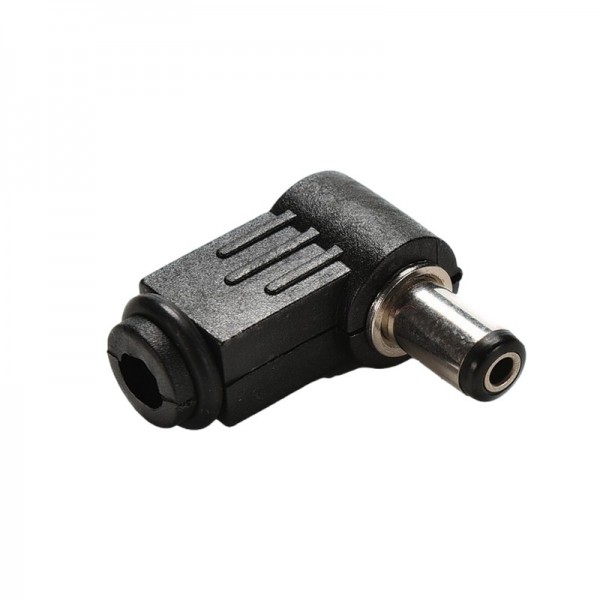

DC Jack plastic 5.5mm - Male - 90 degrees

Based on 1 review(s) - Write a review

€0.50

Ex Tax: €0.41

10 or more €0.45

20 or more €0.40

50 or more €0.37

100 or more €0.35

200 or more €0.33

500 or more €0.30

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

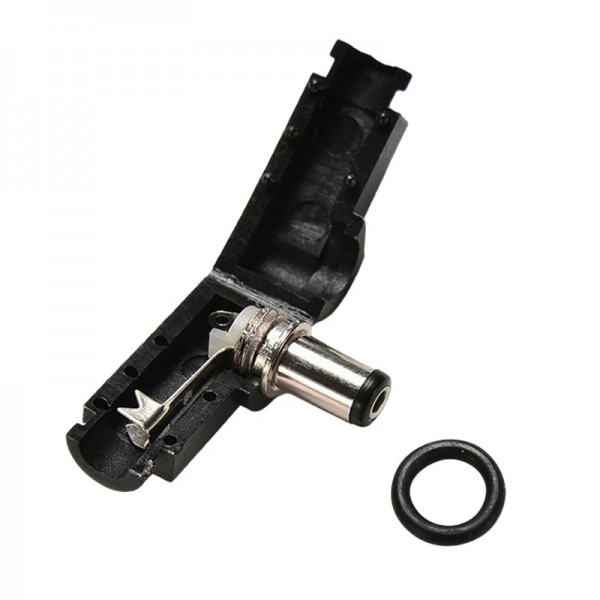

A plastic DC jack with a 90 degree angle. The enclosure is clamped around the DC jack and is held together by a rubber band.

Please login or register to review

This product has 1 review(s) in total.

Tags: DC Jack plastic 5.5mm - Male - 90 degrees , DC5.5M90DEG , DC Jack

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	25
Dimension Y [mm]	11
Dimension Z [mm]	11
Form factor	Individual component
Connectors
Connector type(s)	DC-jack 5.5/2.1mm male Wire solder pin(s)/pad(s)
Number of conductors/pins	2
Orientation	Right-angled
Locking mechanism	Clamp
Connector system	Wire-to-wire Wire-to-board
Connector/pin width [mm]	5.5
Pin length [mm]	9.3
Package contents
Package contents	1x DC jack 1x Enclosure 1x Rubber band
