DC Jack plastic 5.5mm - Female - Mount - DC-025

Based on 1 review(s) - Write a review

€0.50

Ex Tax: €0.41

10 or more €0.45

20 or more €0.40

50 or more €0.35

100 or more €0.30

Qty

Add to Cart

Add to wishlist

1000+ pieces in stock

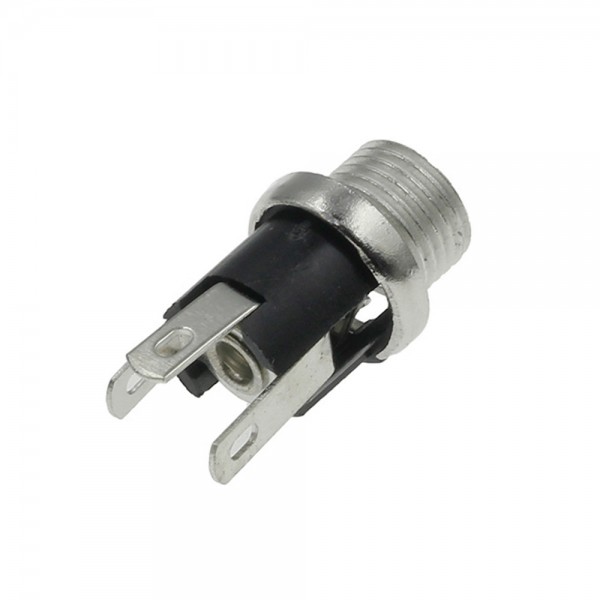

A DC-025 plastic female DC jack.

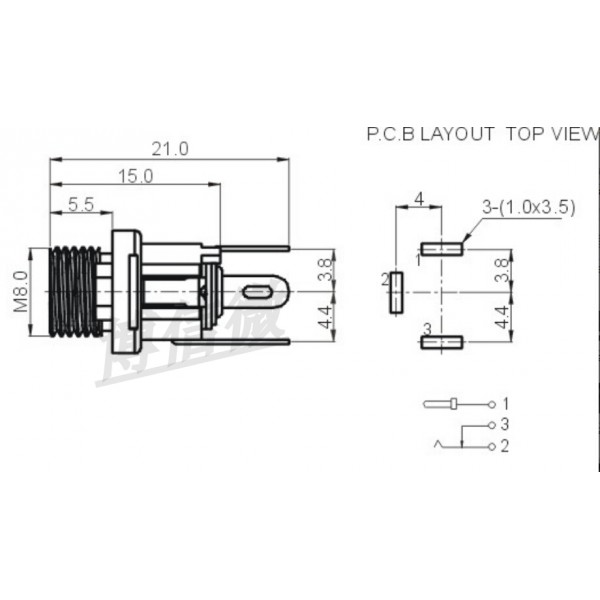

The following pins are shown in one of the images (Note: The picture shows the top view as seen from the DC jack input):

Pin	Description
2	Exterior of DC jack
3	Detection pin, which is connected to pin 2 if no DC jack is connected.
1	Inside (pin) of DC jack

Please login or register to review

This product has 1 review(s) in total.

Tags: DC Jack plastic 5.5mm - Female - Mount - DC-025 , DC5.5FMOUNTDC-025 , DC Jack

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	11
Dimension Y [mm]	11
Dimension Z [mm]	16
Mounting options	Screw thread
Maximum mounting thickness [mm]	2.5
Recommended mounting dimensions [mm]	ø8
Form factor	Individual component DC-025
Connectors
Connector type(s)	DC-jack 5.5/2.1mm female Wire solder pin(s)/pad(s)
Number of conductors/pins	2
Orientation	Straight
Locking mechanism	Clamp
Connector system	Wire-to-wire
Pin insertion length [mm]	9.5
Package contents
Package contents	1x Plastic DC jack female 1x Nut 1x Spring washer
