DC Jack plastic 5.5mm - Female - Mount - DC-022K

Based on 0 review(s) - Write a review

€0.50

Ex Tax: €0.41

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

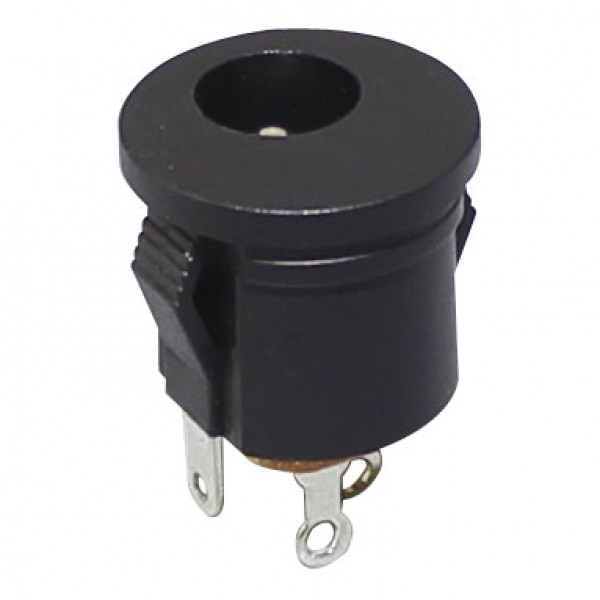

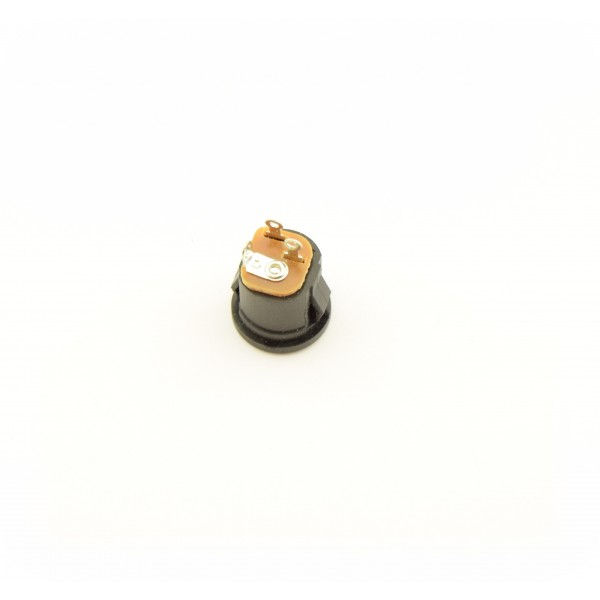

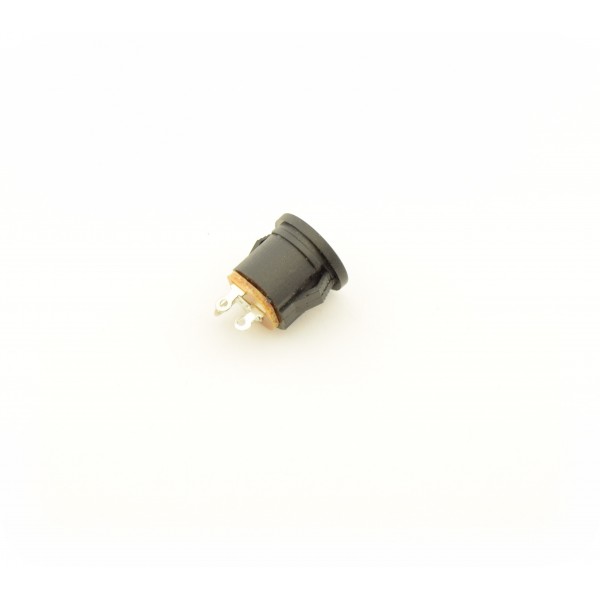

A DC-022K plastic female DC jack.

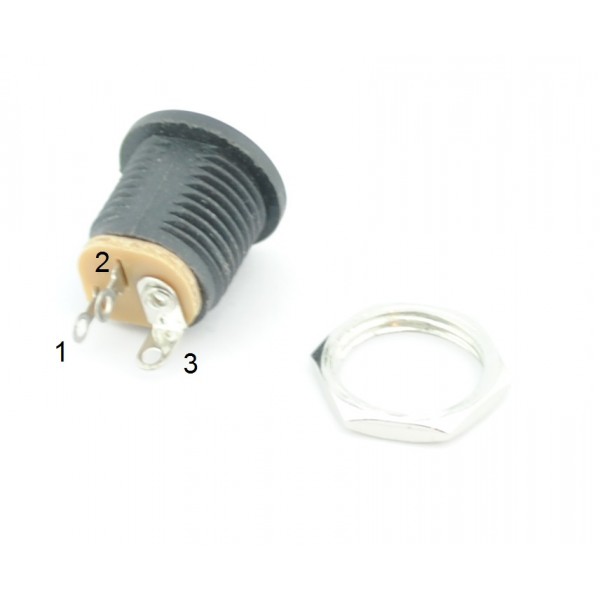

The following pins are shown in one of the images (the photo shows a different type of dc jack, but the pinout is the same):

Pin	Description
1	Exterior of DC jack
2	Detection peg, which is connected to pin 1 if there is no DC jack connected.
3	Inside (pin) of DC jack

Please login or register to review

This product has 0 review(s) in total.

Tags: DC Jack plastic 5.5mm - Female - Mount - DC-022K , DC-022K , DC Jack

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	2

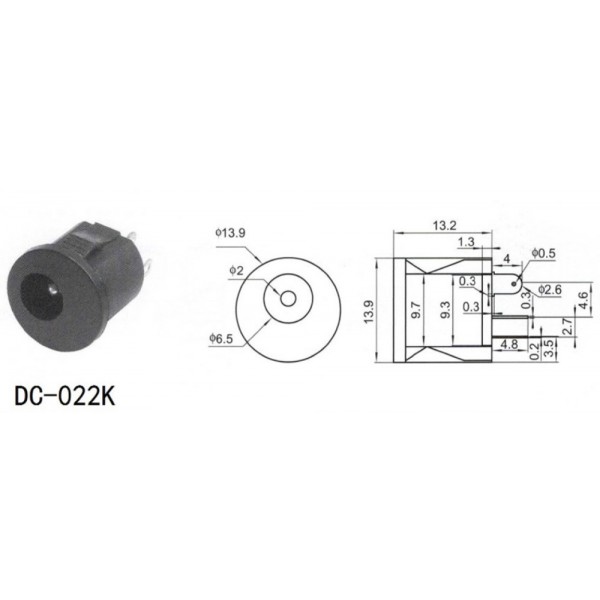

Dimension X [mm]	14
Dimension Y [mm]	14
Dimension Z [mm]	13
Mounting options	Clamp
Maximum mounting thickness [mm]	(No limit)
Recommended mounting dimensions [mm]	ø10
Form factor	Individual component DC-022K
Connectors
Connector type(s)	DC-jack 5.5/2.1mm female Wire solder pin(s)/pad(s)
Number of conductors/pins	2
Orientation	Straight
Locking mechanism	Clamp
Connector system	Wire-to-wire
Pin insertion length [mm]	10.2
Package contents
Package contents	1x DC Jack plastic 5.5mm - Female - Mount - DC-022K
