DC Jack plastic 5.5mm - Female - DC-044

Based on 0 review(s) - Write a review

€0.50

Ex Tax: €0.41

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

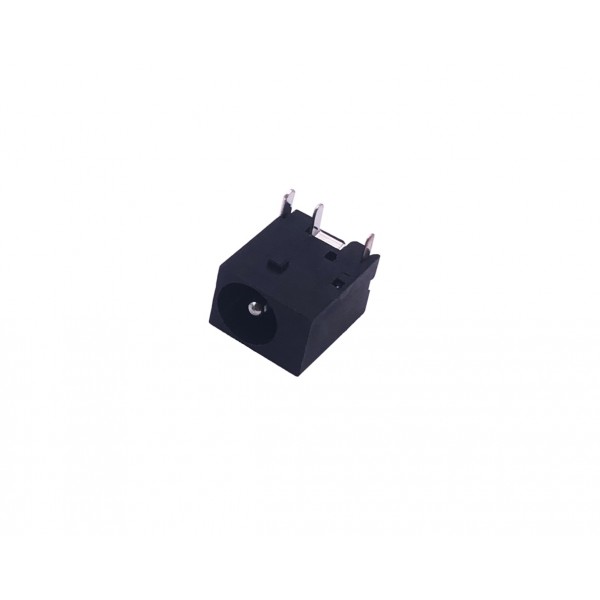

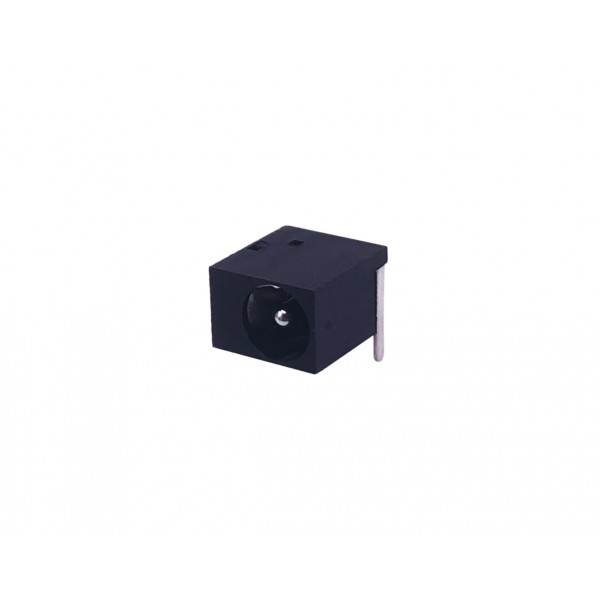

A DC-044 plastic female DC jack.

Please login or register to review

This product has 0 review(s) in total.

Tags: DC Jack plastic 5.5mm - Female - DC-044 , DC-044 , DC Jack

General
Brand	No brand
Norm conformity	RoHS
Minimum operating temperature [°C]	-30
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	12
Dimension Y [mm]	9.8
Dimension Z [mm]	7.6
Mounting options	THT
Form factor	Individual component DC-044
General electrical properties
Maximum voltage [V DC]	30
Maximum current [A]	0.05
Connectors
Connector type(s)	Solder pin(s) (THT) DC-jack 5.5/2.1mm female
Number of conductors/pins	2
Orientation	Right-angled
Locking mechanism	Clamp
Connector system	Wire-to-board
Pin insertion length [mm]	8.8
Package contents
Package contents	1x DC Jack plastic 5.5mm - Female - DC-044
