Name: DC Jack Plastic 5.5-2.1mm - Female - DC-022B - DC-022B
SKU: 001231
Price: 0.5 EUR
Availability: OutOfStock
Rating: 4 (1 reviews)

DC Jack Plastic 5.5-2.1mm - Female - DC-022B

2-4 Weeks

DC Jack Plastic 5.5-2.1mm - Female - DC-022B

Availability: 2-4 Weeks
SKU: 001231

Based on 1 review(s) - Write a review

€0.50

Ex Tax: €0.41

10 or more €0.45

20 or more €0.40

50 or more €0.35

100 or more €0.30

Qty

Add to Cart

Add to wishlist

Not in stock

Description
Reviews

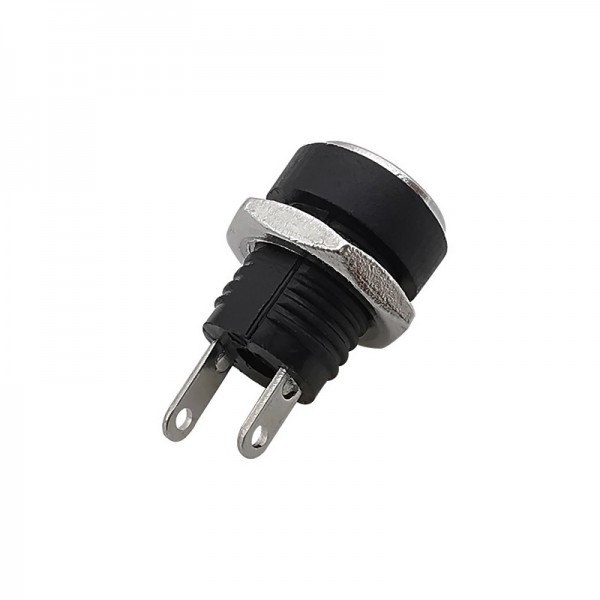

A DC-022B plastic female DC jack.

Please login or register to review

Reviews Over DC Jack Plastic 5.5-2.1mm - Female - DC-022B

Average Rating:

This product has 1 review(s) in total.

Tags: Connectors , DC Jack , DC Jack Plastic 5.5-2.1mm - Female - DC-022B , 001231 , No brand

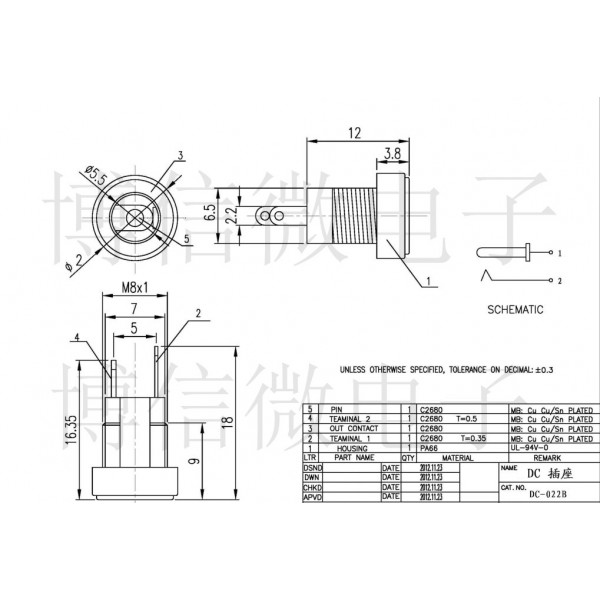

Specifications

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	10
Dimension Y [mm]	10
Dimension Z [mm]	12
Mounting options	Screw thread
Maximum mounting thickness [mm]	4.0
Recommended mounting dimensions [mm]	ø8
Form factor	DC-022B Individual component
Connectors
Connector type(s)	DC-jack 5.5/2.1mm female Wire solder pin(s)/pad(s)
Number of conductors/pins	2
Orientation	Straight
Locking mechanism	Clamp
Connector system	Wire-to-wire
Pin insertion length [mm]	8.9
Package contents
Package contents	1x Plastic DC jack female 1x Nut
