DC Jack plastic 5.5mm - Female

2-4 Weeks

DC Jack plastic 5.5mm - Female

Based on 0 review(s) - Write a review

€0.50

Ex Tax: €0.41

10 or more €0.45

20 or more €0.40

50 or more €0.35

100 or more €0.30

Qty

Add to Cart

Add to wishlist

Not in stock

A female plastic DC jack.

Please login or register to review

This product has 0 review(s) in total.

Tags: DC Jack plastic 5.5mm - Female , DC5.5F , DC Jack

General
Brand	No brand

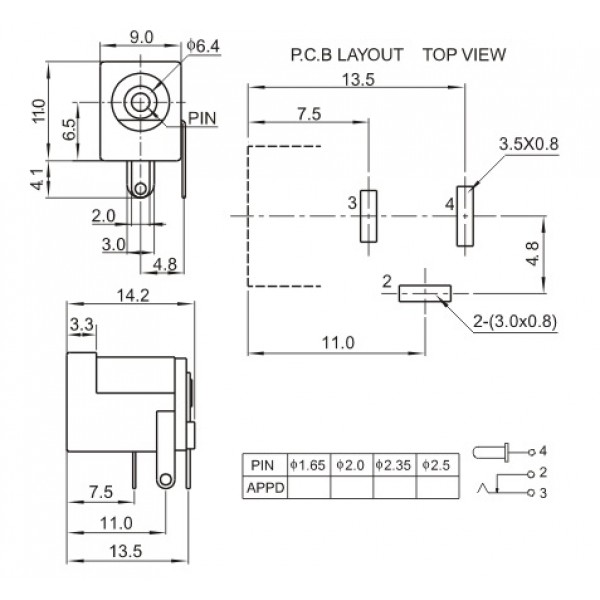

General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	14
Dimension Y [mm]	8.9
Dimension Z [mm]	11
Mounting options	THT
Form factor	Individual component
Connectors
Connector type(s)	Solder pin(s) (THT) DC-jack 5.5/2.1mm female
Number of conductors/pins	2
Orientation	Right-angled
Locking mechanism	Clamp
Connector system	Wire-to-wire Wire-to-board
Pin insertion length [mm]	9.1
Package contents
Package contents	1x DC Jack plastic 5.5mm - Female
