Name: DC Jack Metal 5.5x2.1mm - Female - Mount - DC-099-1 - DC-099
SKU: 001201
Price: 0.75 EUR
Availability: InStock

DC Jack Metal 5.5x2.1mm - Female - Mount - DC-099-1

Based on 0 review(s) - Write a review

€0.75

Ex Tax: €0.62

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

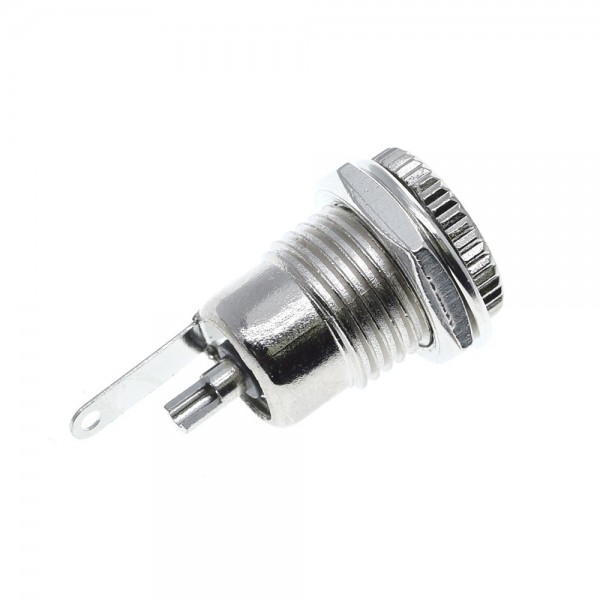

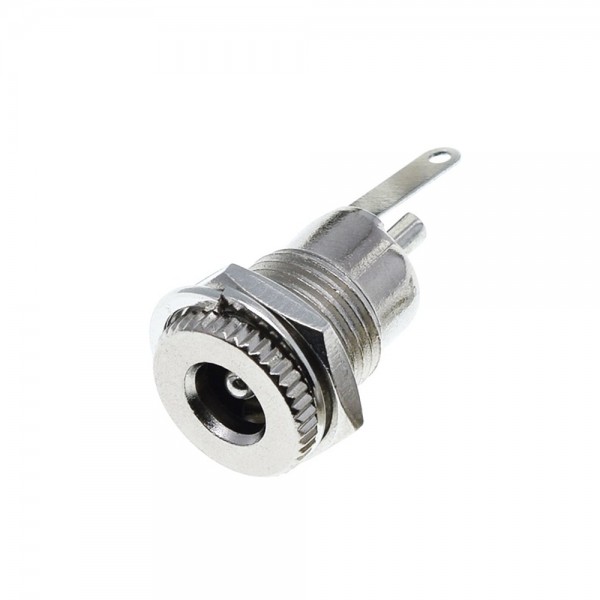

A DC-099 metal female DC jack.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Connectors , DC Jack , DC Jack Metal 5.5x2.1mm - Female - Mount - DC-099-1 , 001201 , No brand , DC-099-1

General
Brand	No brand
Manufacturer model/SKU	DC-099-1
General physical appearance
Main color	Gray/silver
Weight [g]	7
Dimension X [mm]	12
Dimension Y [mm]	12
Dimension Z [mm]	16
Mounting options	Screw thread
Maximum mounting thickness [mm]	6.0
Recommended mounting dimensions [mm]	ø11
Form factor	DC-099 Individual component
General electrical properties
Maximum voltage [V DC]	24
Maximum current [A]	5
Connectors
Connector type(s)	DC-jack 5.5/2.1mm female Wire solder pin(s)/pad(s)
Number of conductors/pins	2
Orientation	Straight
Locking mechanism	Clamp
Connector system	Wire-to-wire
Pin insertion length [mm]	11.7
Package contents

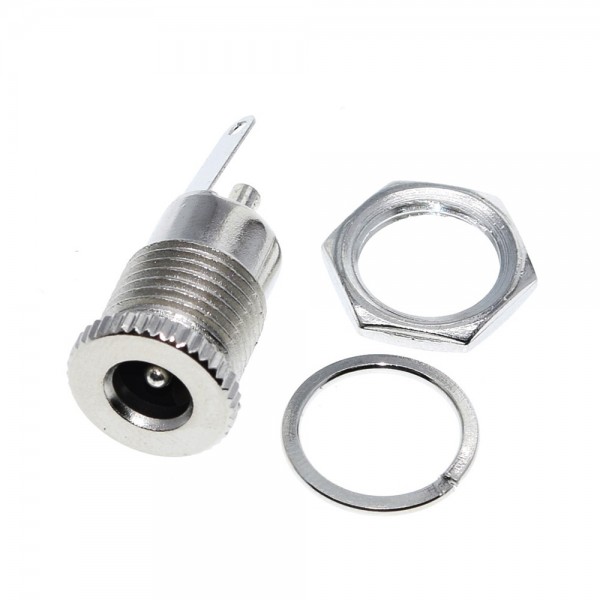

Package contents	1x Metal DC jack female 1x Nut 1x Spring washer
