Banana Chassis Standard - Female - 4mm - Black

Availability: Directly available from warehouse in Eindhoven
SKU: 000556

Based on 0 review(s) - Write a review

€0.40

Ex Tax: €0.33

10 or more €0.35

20 or more €0.30

50 or more €0.25

100 or more €0.20

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

Description
Reviews

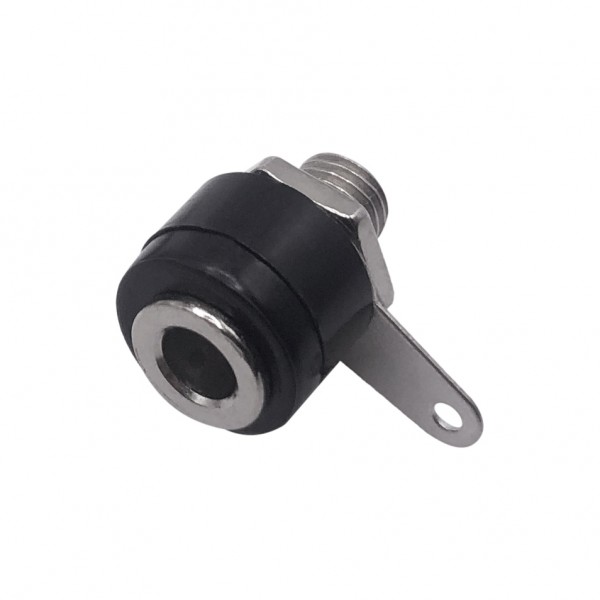

A 4mm banana chassis connection with protrusive tab to easily solder a wire to it. The plastic part consists of two parts where the chassis must sit between these parts.

Note: When soldering a wire on the tab, first unscrew the tab. This will prevent the plastic from burning.

Please login or register to review

Reviews Over Banana Chassis Standard - Female - 4mm - Black

Average Rating:

This product has 0 review(s) in total.

Tags: Banana Chassis Standard - Female - 4mm - Black , BANANACHAS4MMBLK , Banana

Specifications

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	11
Dimension Y [mm]	11
Dimension Z [mm]	15
Mounting options	Screw thread
Maximum mounting thickness [mm]	3.5
Recommended mounting dimensions [mm]	ø8
Form factor	Individual component
General electrical properties
Maximum voltage [V AC]	250
Maximum voltage [V DC]	50
Maximum current [A]	5
Connectors
Connector type(s)	Banana female Wire solder pin(s)/pad(s)
Number of conductors/pins	1
Orientation	Straight
Locking mechanism	Clamp
Connector system	Wire-to-wire Wire-to-board
Connector/pin width [mm]	4.0
Pin insertion length [mm]	15 (Open on both sides, infinite)
Package contents
Package contents	1x Banana chassis female 1x Plastic mounting ring 1 1x Plastic mounting ring 2 1x Solder eye 1x Nut
