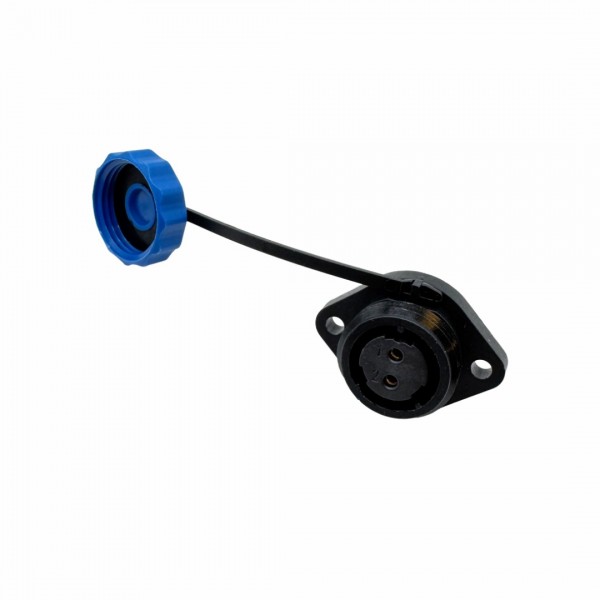

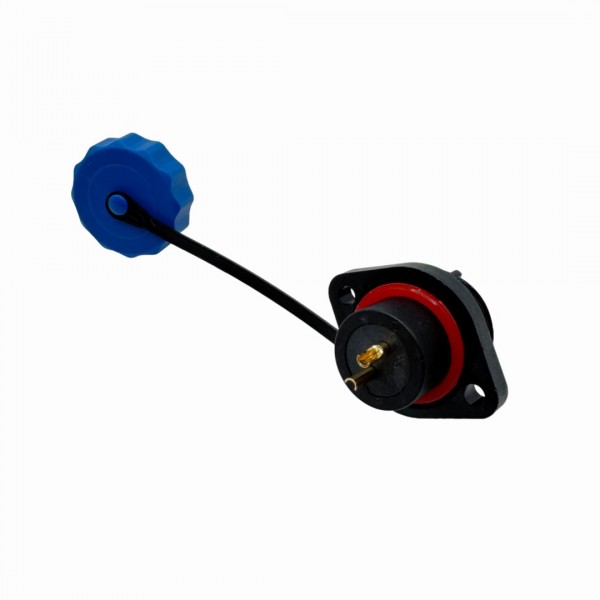

SD16 Female Waterproof Panel Mount Connector 2p - 2 Mounting Holes

New

SD16 Female Waterproof Panel Mount Connector 2p - 2 Mounting Holes

Based on 0 review(s) - Write a review

€1.60

Ex Tax: €1.32

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A connector that is suitable for many applications due to its water resistance.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: SD16 Female Waterproof Panel Mount Connector 2p - 2 Mounting Holes , SD16ZSK02 , SD16

General
Brand	JiXiang
Manufacturer model/SKU	SD16ZSK02
Norm conformity	RoHS
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	11
Dimension X [mm]	31
Dimension Y [mm]	23
Dimension Z [mm]	22
Material	Nylon (PA6) Nylon (PA66)
Water and dust protection	IP68
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.5
Recommended mounting dimensions [mm]	ø16.5
Form factor	Individual component
General electrical properties
Maximum voltage [V AC]	250
Maximum current [A]	10
Connectors
Connector type(s)	Wire solder pin(s)/pad(s) SD13 female
Number of conductors/pins	2
Orientation	Straight
Locking mechanism	Twist
Conductor material	Brass
Isolation material	Polyphenylene sulfide (PPS)
Maximum wire thickness [mm²]	1.5
Package contents
Package contents	1x Waterproof connector
