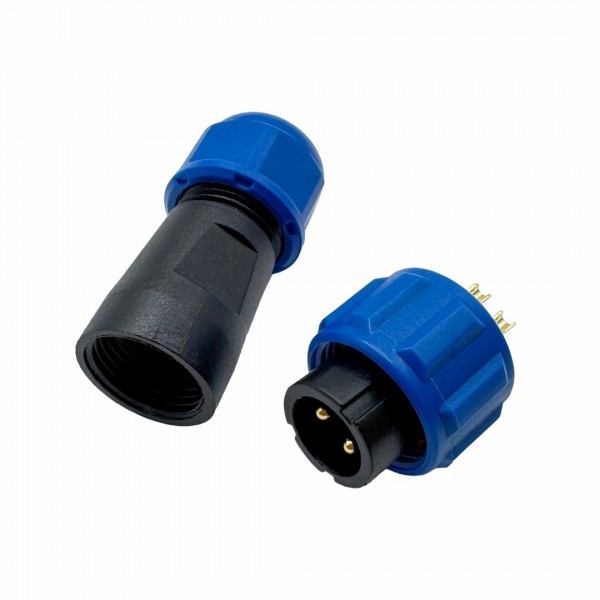

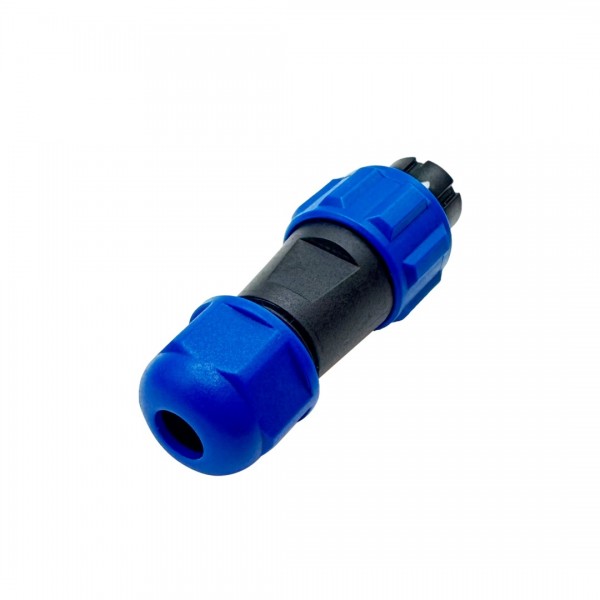

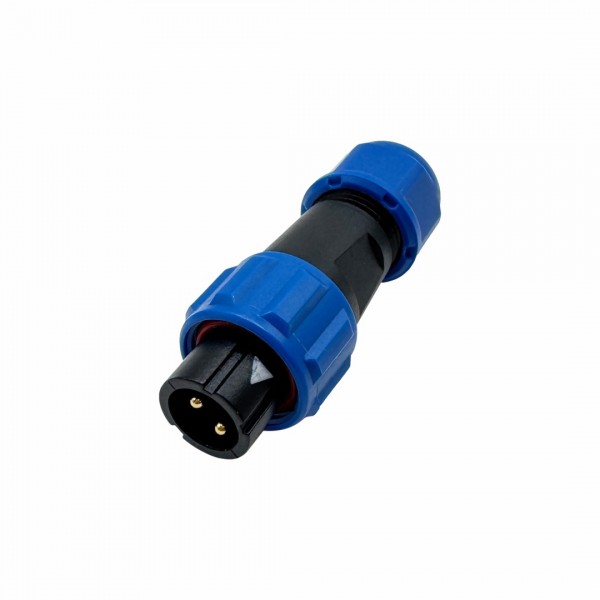

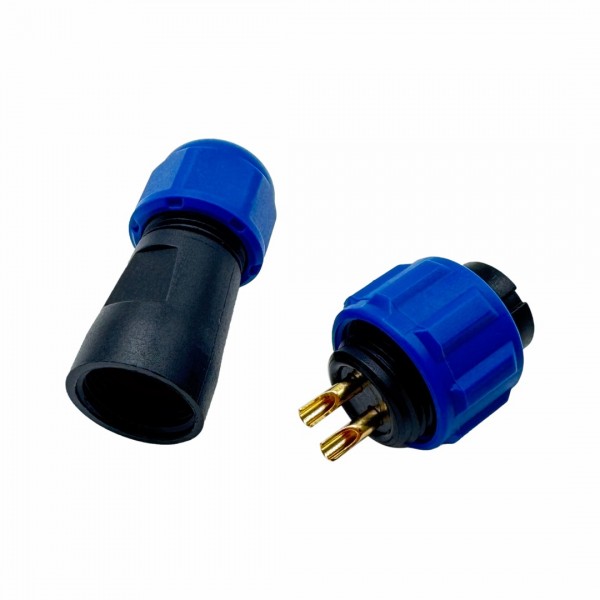

SD13 Male Waterproof Cable Connector 2p

New

SD13 Male Waterproof Cable Connector 2p

Based on 0 review(s) - Write a review

€1.60

Ex Tax: €1.32

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

A connector that is suitable for many applications due to its water resistance.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: SD13 Male Waterproof Cable Connector 2p , SD13TPJ02 , SD13

General
Brand	JiXiang
Manufacturer model/SKU	SD13TPJ02
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	9
Dimension X [mm]	19
Dimension Y [mm]	19
Dimension Z [mm]	52
Material	Nylon
Water and dust protection	IP68
Form factor	Individual component
General electrical properties
Maximum voltage [V AC]	250
Maximum current [A]	10
Connectors
Connector type(s)	Wire solder pin(s)/pad(s) SD13 male
Number of conductors/pins	2
Orientation	Straight
Locking mechanism	Twist
Conductor material	Brass
Isolation material	Polyphenylene sulfide (PPS)
Maximum wire thickness [mm²]	1.5
Wire/cable
Minimum cable diameter [mm]	4
Maximum cable diameter [mm]	6.5
Package contents
Package contents	1x Waterproof connector
