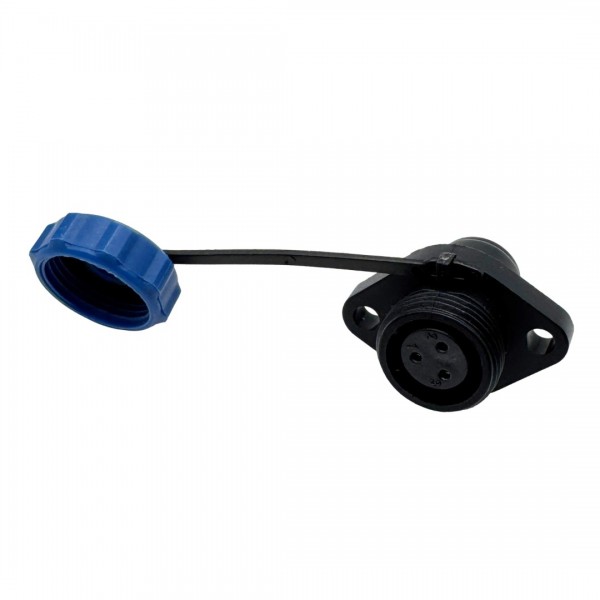

SD13 Female Waterproof Panel Mount Connector 3p - 2 Mounting Holes

New

SD13 Female Waterproof Panel Mount Connector 3p - 2 Mounting Holes

Based on 0 review(s) - Write a review

€1.60

Ex Tax: €1.32

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

A connector that is suitable for many applications due to its water resistance.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: SD13 Female Waterproof Panel Mount Connector 3p - 2 Mounting Holes , SD13ZSK03 , SD13

General
Brand	JiXiang
Manufacturer model/SKU	SD13ZSK03
Norm conformity	RoHS
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	7
Dimension X [mm]	29
Dimension Y [mm]	20
Dimension Z [mm]	22
Material	Nylon (PA6) Nylon (PA66)
Water and dust protection	IP68
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.5
Recommended mounting dimensions [mm]	ø13
Form factor	Individual component
General electrical properties
Maximum voltage [V AC]	250
Maximum current [A]	5
Connectors
Connector type(s)	Wire solder pin(s)/pad(s) SD13 female
Number of conductors/pins	3
Orientation	Straight
Locking mechanism	Twist
Conductor material	Brass
Isolation material	Polyphenylene sulfide (PPS)
Maximum wire thickness [mm²]	0.75
Package contents
Package contents	1x Waterproof connector
