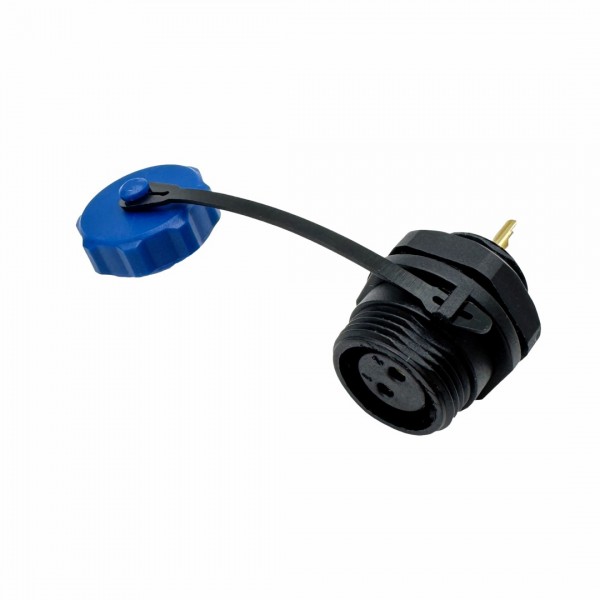

SD13 Female Waterproof Panel Mount Connector 2p - Screw Mount
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007144
€1.50
Ex Tax: €1.24
Your shopping cart is empty!
A connector that is suitable for many applications due to its water resistance.
Check the tab "Downloads" for more information and/or downloads.
This product has 0 review(s) in total.
Datasheet: JiXiang-SD13-datasheet.pdf
| General | |
| Brand | JiXiang |
| Manufacturer model/SKU | SD13ZMK02 |
| Norm conformity | RoHS |
| Minimum operating temperature [°C] | -25 |
| Maximum operating temperature [°C] | 85 |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 7 |
| Dimension X [mm] | 20 |
| Dimension Y [mm] | 20 |
| Dimension Z [mm] | 22 |
| Material | Nylon (PA6) Nylon (PA66) |
| Water and dust protection | IP68 |
| Mounting options | Screw thread |
| Maximum mounting thickness [mm] | 5.5 |
| Recommended mounting dimensions [mm] | ø13 |
| Form factor | Individual component |
| General electrical properties | |
| Maximum voltage [V AC] | 250 |
| Maximum current [A] | 10 |
| Connectors | |
| Connector type(s) | SD13 female Wire solder pin(s)/pad(s) |
| Number of conductors/pins | 2 |
| Orientation | Straight |
| Locking mechanism | Twist |
| Conductor material | Brass |
| Isolation material | Polyphenylene sulfide (PPS) |
| Maximum wire thickness [mm²] | 1.5 |
| Package contents | |
| Package contents | 1x Waterproof connector |
