GX16-9 Connector Set

Availability: Directly available from warehouse in Eindhoven
SKU: 001596

Based on 0 review(s) - Write a review

€2.40

Ex Tax: €1.98

10 or more €2.30

20 or more €2.20

50 or more €2.10

100 or more €2.00

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

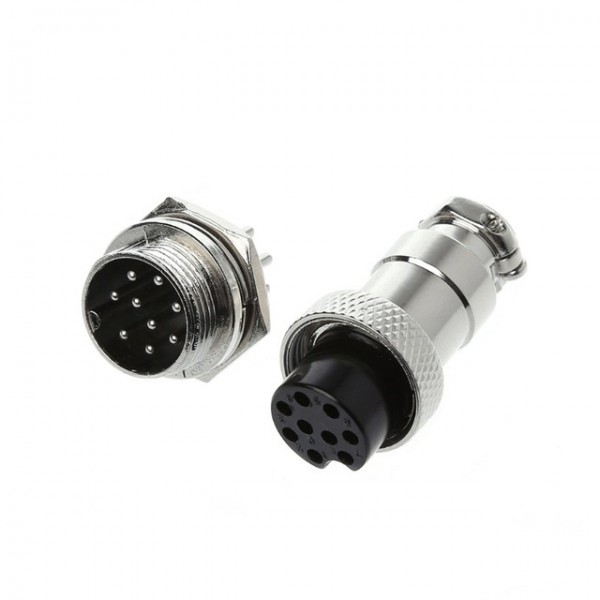

With this sturdy connector you can make a good 9-pin connection. With this set you get both connectors with a mountable part and a part where you can attach a cable.

Please login or register to review

Reviews Over GX16-9 Connector Set

Average Rating:

This product has 0 review(s) in total.

Tags: GX16-9 Connector Set , GX16-9 , GX16

Specifications

General
Brand	No brand
General physical appearance
Main color	Gray/silver
Weight [g]	21
Dimension X [mm]	19
Dimension Y [mm]	19
Mounting options	Screw thread
Maximum mounting thickness [mm]	3.0
Recommended mounting dimensions [mm]	ø16
Form factor	Set/kit
General electrical properties
Maximum voltage [V AC]	125
Maximum voltage [V DC]	125
Maximum current [A]	4
Connectors
Connector type(s)	GX16 male GX16 female Wire solder pin(s)/pad(s)
Number of conductors/pins	9
Orientation	Straight
Locking mechanism	Twist
Connector system	Wire-to-wire
Package contents
Package contents	1x GX16-9 female connector 1x GX16-9 male connector 1x Spring washer 1x Nut
