GX16-10 Connector Set - with Mount Plate

2-4 Weeks

GX16-10 Connector Set - with Mount Plate

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

Qty

Add to Cart

Add to wishlist

Not in stock

With this connector set you can make a sturdy connection. The housing of the male connector can be fixed on a flat surface with the supplied bolts.

Please login or register to review

This product has 0 review(s) in total.

Tags: GX16-10 Connector Set - with Mount Plate , GX16-10-CONSETMOUNT , GX16

General
Brand	No brand

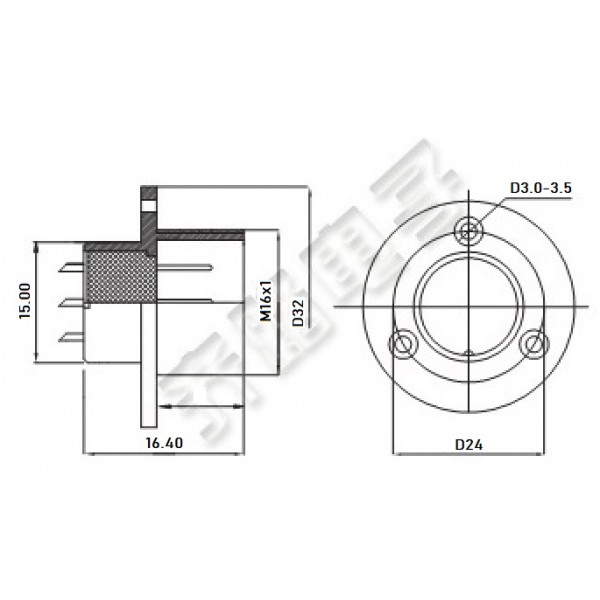

General physical appearance
Main color	Gray/silver
Weight [g]	34
Dimension X [mm]	32
Dimension Y [mm]	32
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Maximum mounting thickness [mm]	8.0
Recommended mounting dimensions [mm]	ø16
Form factor	Set/kit
General electrical properties
Maximum voltage [V AC]	125
Maximum voltage [V DC]	125
Maximum current [A]	4
Connectors
Connector type(s)	GX16 male GX16 female Wire solder pin(s)/pad(s)
Number of conductors/pins	10
Orientation	Straight
Locking mechanism	Twist
Connector system	Wire-to-wire

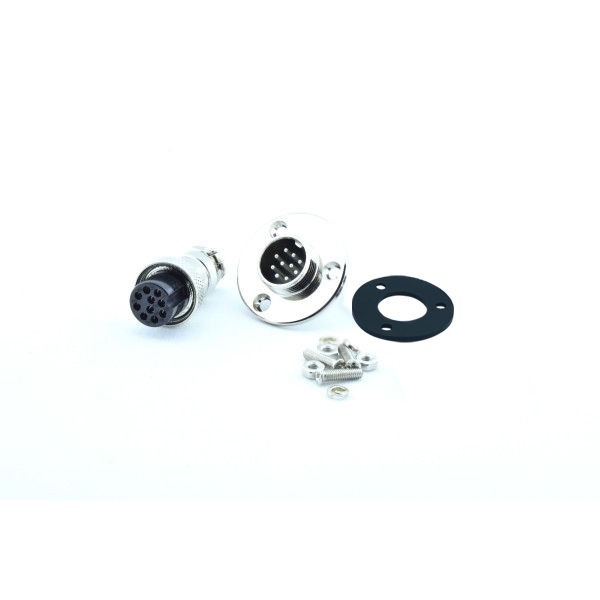

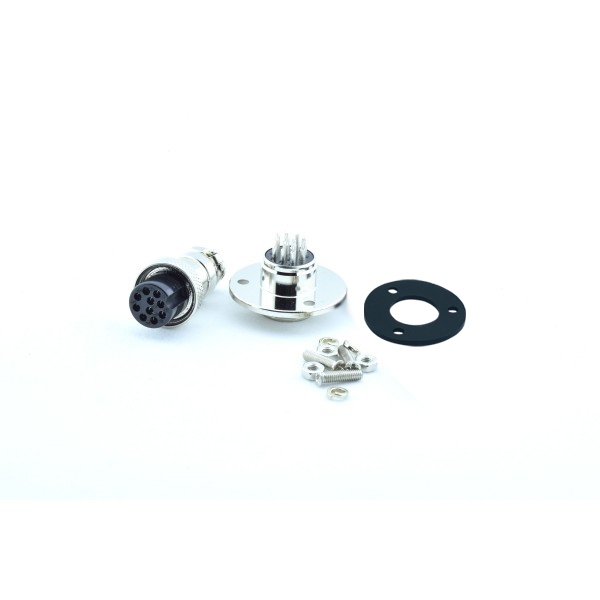

Package contents
Package contents	1x GX16-10 male connector with mount plate 1x GX16-10 female connector 1x Rubber washer 3x M3 bolt 3x M3 nut 3x Spring washer
