Audio Jack SMD - 3.5mm Female TRRS - PJ-342 - 14-17mm

Availability: Directly available from warehouse in Eindhoven
SKU: 003553

Based on 0 review(s) - Write a review

€0.50

Ex Tax: €0.41

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

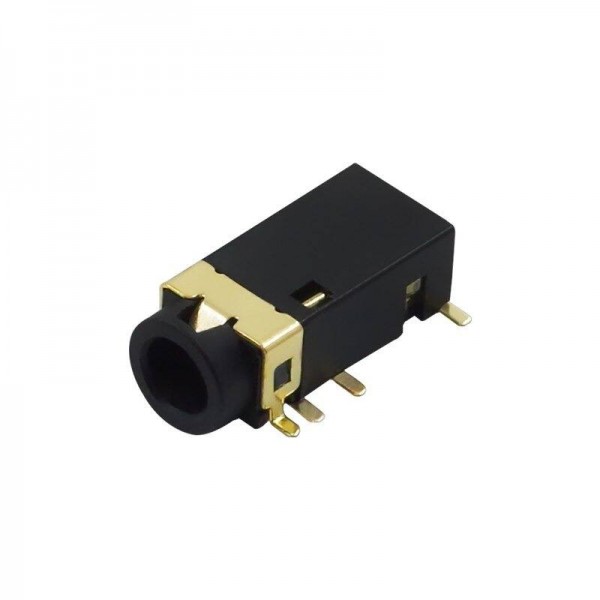

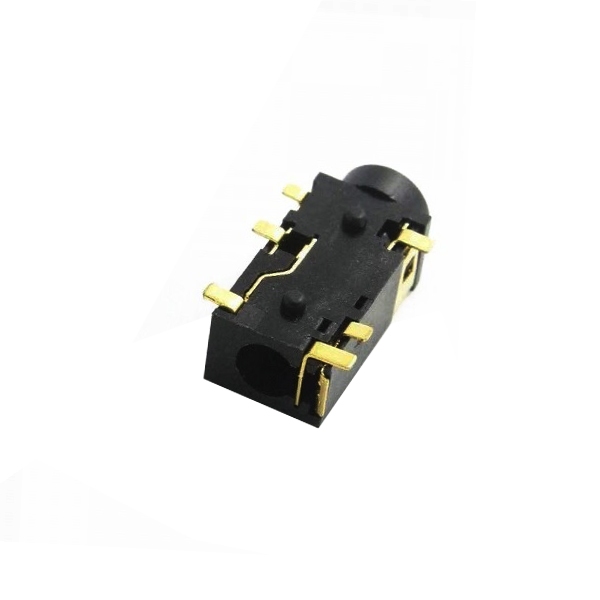

A compact SMD jack connector that is used in audio applications, among others. Compared to the PJ-313D (TRS), for example, this jack has 4 pins instead of 3.

Note: This connector is only suitable for TRRS male audio jacks with a 14 to 17mm jack length.

Please login or register to review

Reviews Over Audio Jack SMD - 3.5mm Female TRRS - PJ-342 - 14-17mm

Average Rating:

This product has 0 review(s) in total.

Tags: Audio Jack SMD - 3.5mm Female TRRS - PJ-342 - 14-17mm , 3.5FJACKSMD-TRRS , Audio

Specifications

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	1

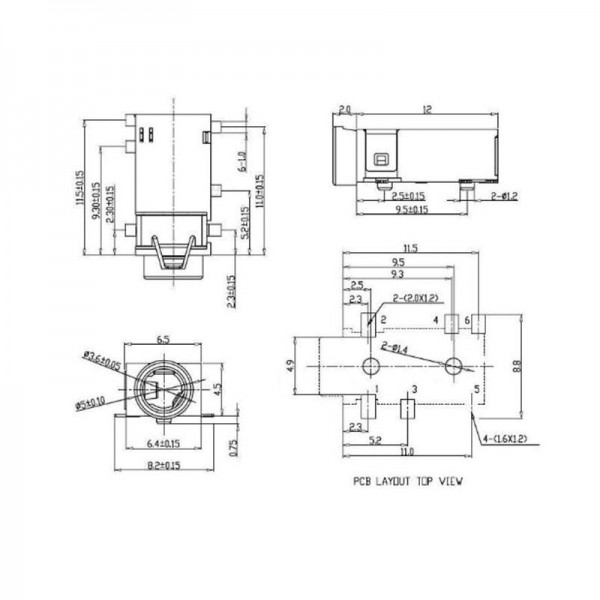

Dimension X [mm]	14
Dimension Y [mm]	6.4
Dimension Z [mm]	4.5
Mounting options	SMT
Form factor	Individual component
Connectors
Connector type(s)	Solder pin(s) (SMT) Audio jack 3.5mm female

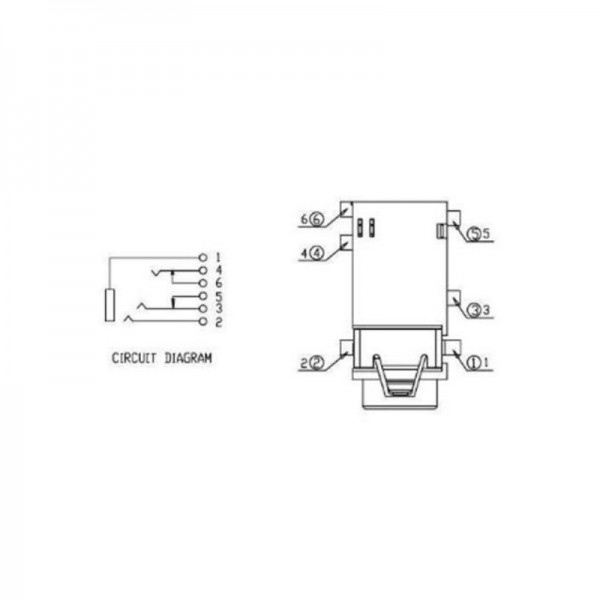

Number of conductors/pins	4
Orientation	Right-angled
Locking mechanism	Click
Connector system	Wire-to-board
Pin insertion length [mm]	17 (Suitable for 14 to 17mm)
Package contents
Package contents	1x Audio Jack SMD - 3.5mm Female TRRS - PJ-342 - 14-17mm
