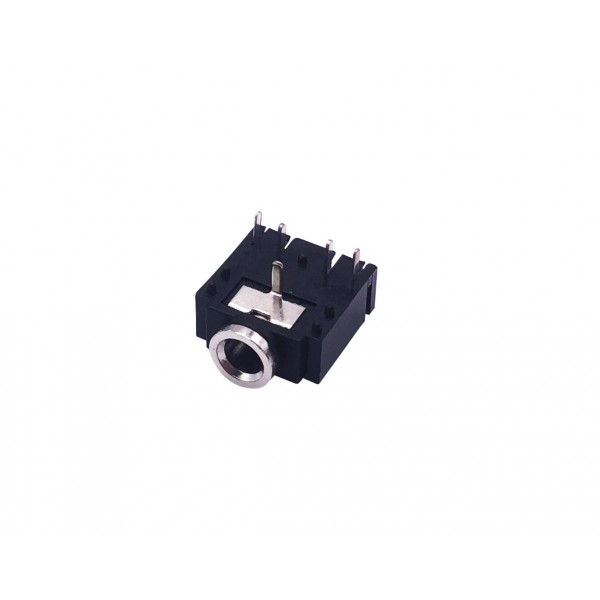

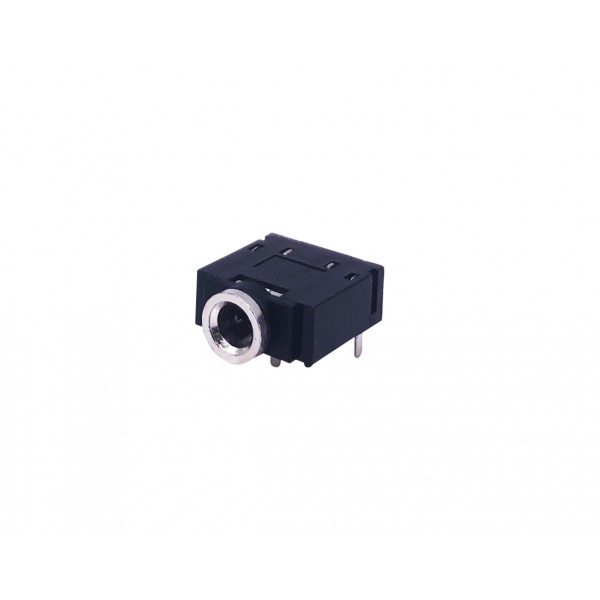

Audio Jack - 3.5mm Female (metal and plastic)

Audio Jack - 3.5mm Female (metal and plastic)
Audio Jack - 3.5mm Female (metal and plastic)
Audio Jack - 3.5mm Female (metal and plastic)
Audio Jack - 3.5mm Female (metal and plastic)
Audio Jack - 3.5mm Female (metal and plastic)
Audio Jack - 3.5mm Female (metal and plastic)
Audio Jack - 3.5mm Female (metal and plastic)
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 000157
€0.50
Ex Tax: €0.41

A 3.5mm female jack that can easily be soldered onto a PCB.

Please login or register to review

Reviews Over Audio Jack - 3.5mm Female (metal and plastic)

This product has 0 review(s) in total.

Specifications

General
Brand No brand
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 14
Dimension Y [mm] 12
Dimension Z [mm] 6
Mounting options THT
Form factor Individual component
Connectors
Connector type(s) Solder pin(s) (THT)
Audio jack 3.5mm female
Number of conductors/pins 3
Orientation Right-angled
Locking mechanism Click
Connector system Wire-to-board
Pin insertion length [mm] 14.1
(Infinite)
Package contents
Package contents 1x Audio Jack - 3.5mm Female (metal and plastic)
