M5Stack Atom Speaker Kit - including M5Atom Lite

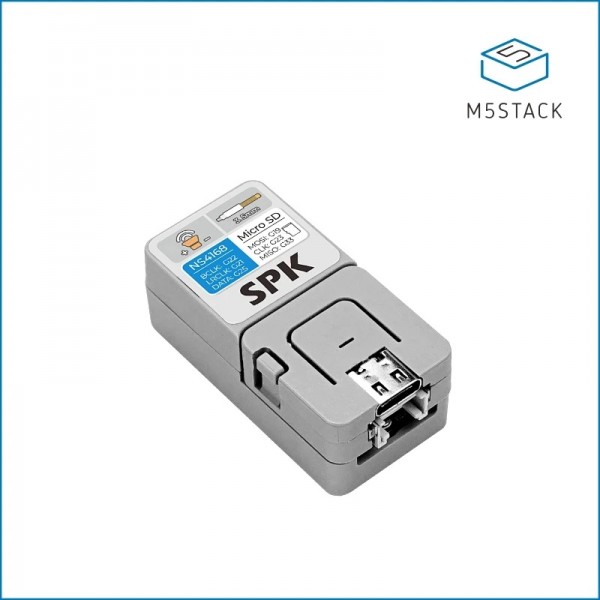

The Atom Speaker Kit is an audio player that consists of three parts: An M5Stack Atom Lite, the SPK module and a speaker.

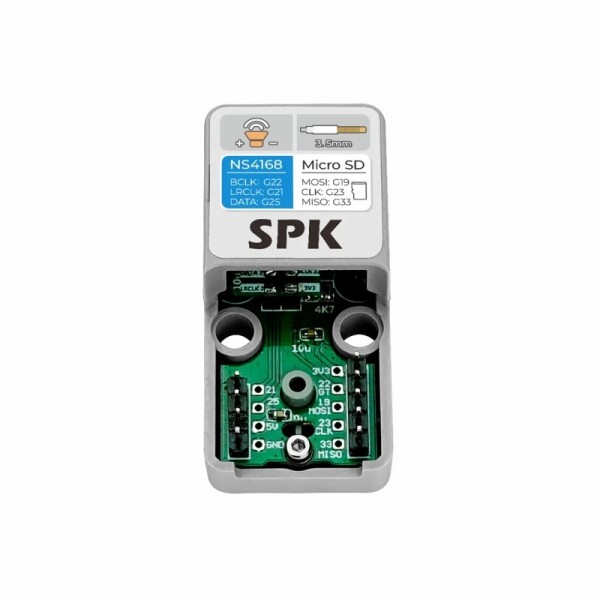

Specifications SPK Module:

• Amplifier chip: NS4168
• Nominal speaker power: 1W

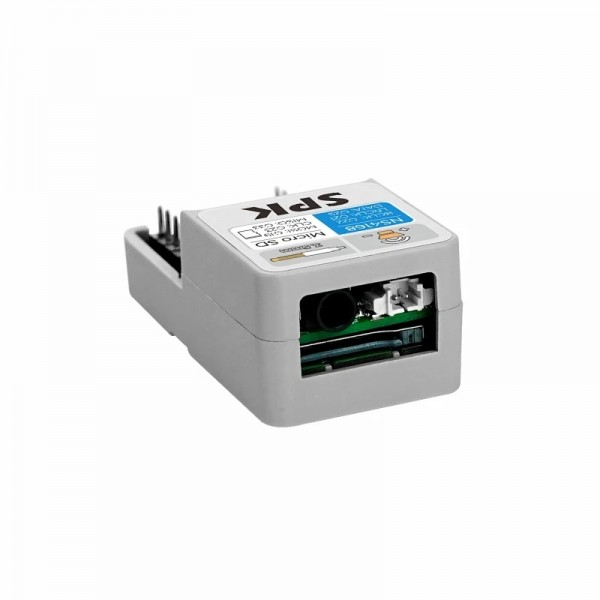

• Built-in 3.5mm audio jack output
• Audio interface: I2S
• Built-in microSD card adapter: max 16GB
• Speaker connector: 2p Molex Picoblade
• Dimensions complete kit: 24 x 48 x 18mm

The Atom Lite from M5Stack is a compact development board based on an ESP32 chipset. It includes Wi-Fi, Bluetooth and a built-in push button. See the following page for more information: Atom Lite

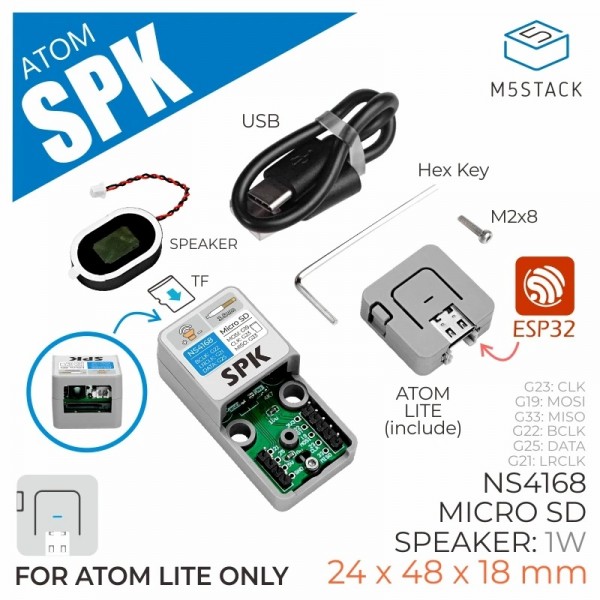

Package contents:

• 1x Atomic SPK Module
• 1x Atom Lite
• 1x 1W speaker
• 1x M2*8 Bolt with internal hexagon
• 1x Allen key
• 1x Type-C USB cable (~20cm)

See the following page for more information: Atomic SPK Kit.

Note: The SPK module is not compatible with the Atom Matrix (pin conflict).
