Stereo Audio Receiver with Audio Jack - MH-M28 - Bluetooth 4.2

This MH-M28 Bluetooth audio receiver is a simple Bluetooth module to which audio can be streamed via Bluetooth from, for example, a laptop or telephone. The audio is then outputted on the audio jack and audio pins that are present on the board. This module does not need to be programmed and can therefore be used very easily. The board has a micro USB connection with which it can be powered (micro USB cable not included).

Specifications:

• Supply voltage: 5V DC (via micro USB or "5V" pin)
• Current without Bluetooth connection: 5.5mA
• Current with Bluetooth connection: 20mA
• Built-in 3.5mm audio jack
• Bluetooth version: 4.2
• Supported file types: WAV/WMA/FLAC/APE/MP3
• Bluetooth name: MH-M28

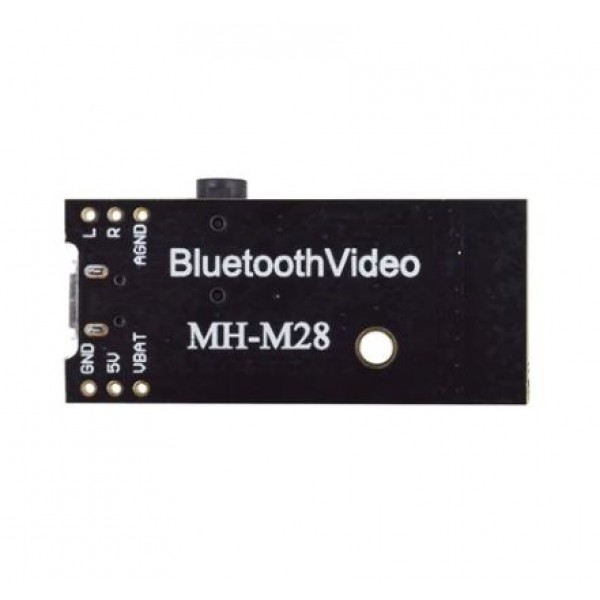

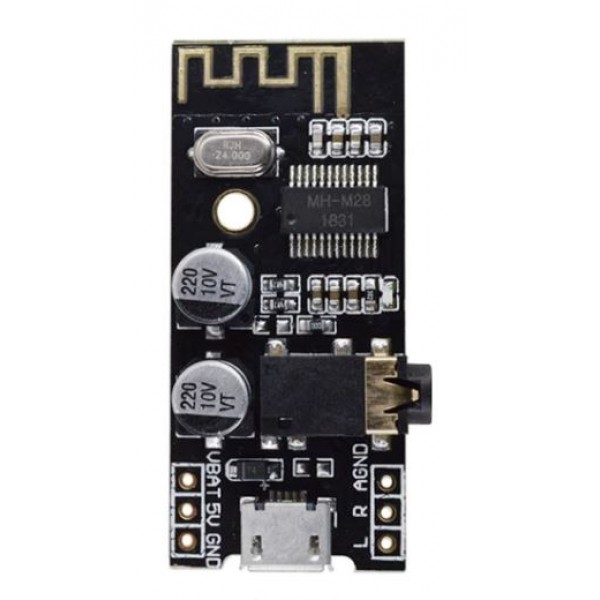

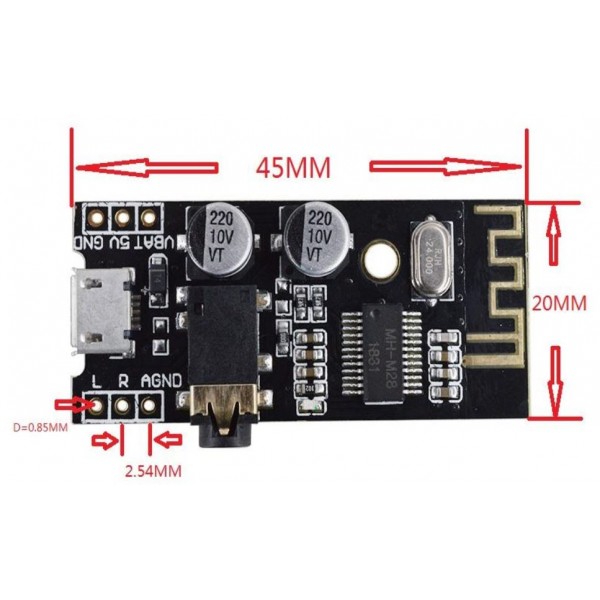

• See images for pin-in/pin-out and dimensions

Package contents:

• 1x Bluetooth Audio Receiver - MH-M28

Note: The board also lists a "VBAT" pin to which a 3.7V Li-ion/Li-Po battery could be connected, however we do not recommend this due to a lack of a suitable charging circuit.
