MP3 Shield VS1053 - Uno-Mega

With this MP3 shield you can play various formats of music and have it controlled by your Arduino.
The music is on a micro-SD card that you can place in the micro-SD card holder on the shield.
In addition to playing music, this shield can also record music with the build-in microphone or an external microphone.

Specifications:

• Uses SPI interface
• Has a 3.5mm female (stereo) audio jack for output and microphone input. (two separate 3.5 mm connections)
• Has a build-in microphone for sound recording
• Compatible with the Arduino Uno and Mega
• Has a micro-SD card holder (the chip on the shield supports FAT16 and FAT32)

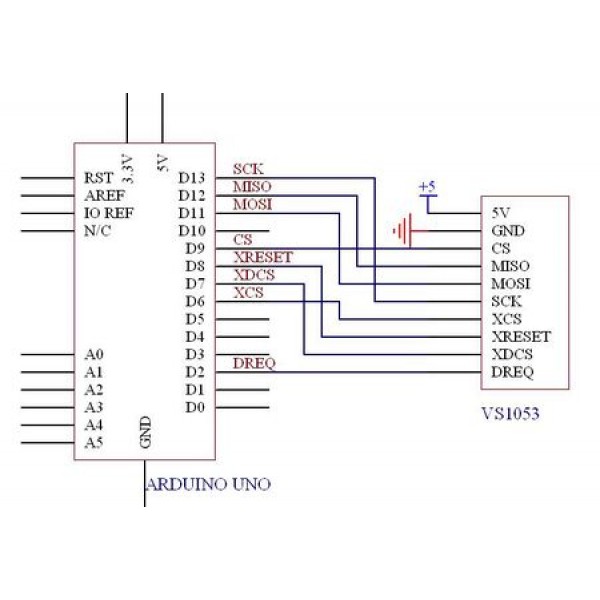

• For pinout see image with pin descriptions (pin descriptions with X refer to pins to the VS1053 chip)
• Only works on 5V DC.

The following formats are supported for sound playback:

• Ogg Vorbis
• MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
• MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
• MPEG4/2 AAC-LC (+PNS), HE-AAC v2 (Level 3) (SBR + PS)
• WMA4.0/4.1/7/8/9 (5-384 kbps)
• FLAC lossless audio (only with software plugin, up to 24 bits, 48kHz)
• WAV (PCM + IMA ADPCM)
• General MIDI 1/SP-MIDI format 0

The following formats are supported for sound recording:

• Ogg Vorbis (with software plugin)
• IMA ADPCM
• 16-bit PCM

For more information see the following page: MP3 Player Shield Hookup Guide V15 (the shield of sparkfun has the necessary pins in the same place, the code works immediately!)
If you want to use this shield in combination with an Arduino Mega, you have to connect the following pins (e.g. with male-male jumper/dupont cables):

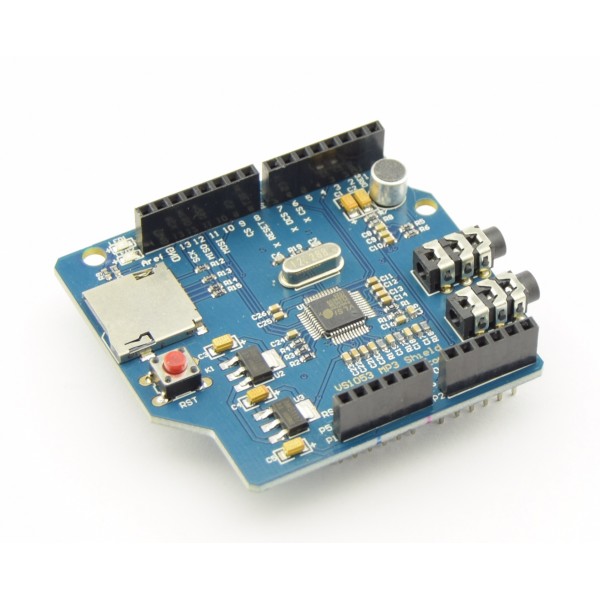

Note: The color of the printed circuit board may differ. It can be blue or red in color.
