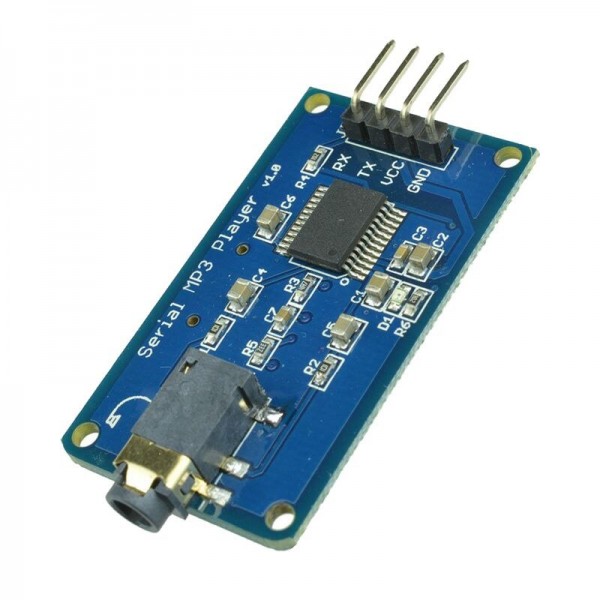

Mini MP3 Module YX5300 with Audio Jack

With this mini MP3 module you can play music from a microSD card and have it controlled by an Arduino or other microcontroller. The module can be controlled with UART (TX/RX).

Specifications:

• Supply voltage: 3.2-5.2V DC
• Signal voltage: 3.2-5.2V
• Interface: UART (TX/RX)
• Baud rate: 9600bps
• Built-in 24-bit DAC
• Compatible with all Arduino's (that have a UART connection)

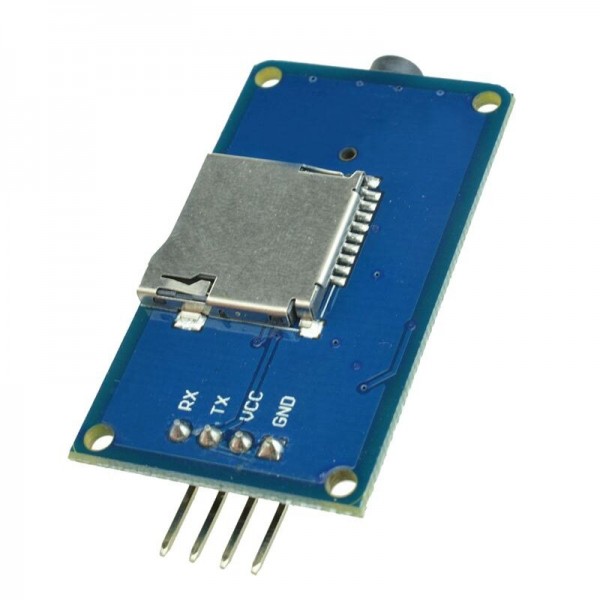

• Built-in microSD card slot for microSD cards up to 32GB (formatted in FAT16 or FAT32)
• Built-in 3.5mm audio jack connection
• Supports MP3 and WAV audio files
• Supports up to 100 folders, where each folder can have up to 255 audio files
• Adjustable volume in 30 steps
• PCB dimensions: 42 x 24mm

See the following Arduino library to get started with the module: MajicDesigns/MD_YX5300

Note: The microSD card is not accessible via the serial connection. Moreover, the module may come with a compatible "JL" chip or YX6300 chip instead of the standard YX5300 chip.
