Keyestudio YX5200-24SS MP3 Player Module

Keyestudio YX5200-24SS MP3 Player Module
Keyestudio YX5200-24SS MP3 Player Module
Keyestudio YX5200-24SS MP3 Player Module
Keyestudio YX5200-24SS MP3 Player Module
Keyestudio YX5200-24SS MP3 Player Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005861
Based on 0 review(s) - Write a review
€6.00
Ex Tax: €4.96
Add to Cart
Add to wishlist

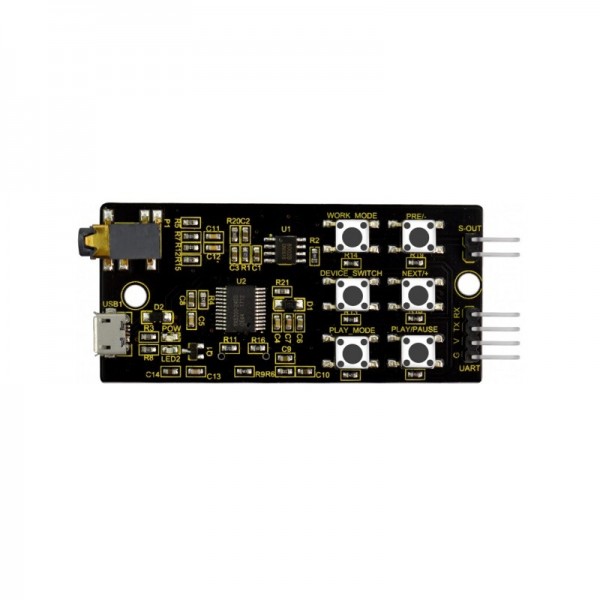

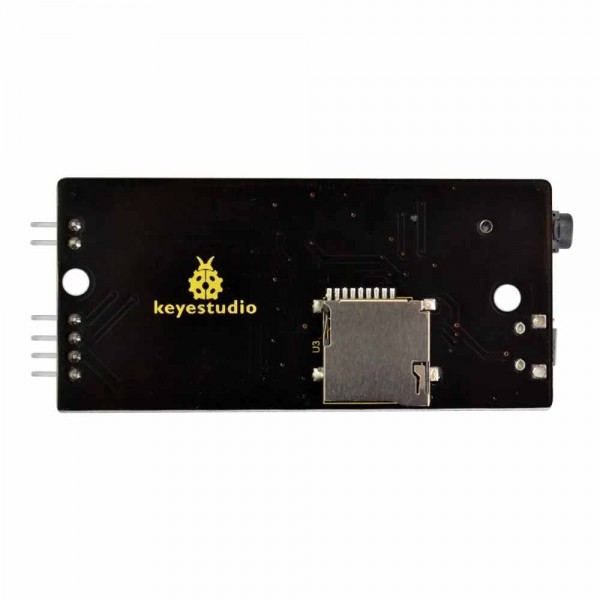

The Keyestudio YX5200-24SS is an audio module that supports MP3, WAV and WMA files. This module is equipped with an integrated audio amplifier, an SD card slot, audio jack, and can be controlled via UART or the built-in buttons.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Keyestudio YX5200-24SS MP3 Player Module

This product has 0 review(s) in total.

Tags: Audio , Audio Sources , Keyestudio YX5200-24SS MP3 Player Module , 005861 , Keyestudio , KS0387 , SD-card adapter , MP3 , Audio amplifier , UART , DAC , USB

Specifications

General
Brand Keyestudio
Manufacturer model/SKU KS0387
Minimum operating temperature [°C] 10
Maximum operating temperature [°C] 40
Features MP3
Audio amplifier
SD-card adapter
General physical appearance
Main color Black
Weight [g] 11
Dimension X [mm] 69
Dimension Y [mm] 33
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) DAC
USB
UART
DAC chip YX5200-24SS
DAC type Audio DAC
Maximum available analog output pins (DAC) 2
Default baudrate 9600
Supported SD card size Micro SD
Supported file extensions MP3
WAV
WMA
Audio amplifier
Amplifier chip NS8002
Number of (normal) channels 1
Amplifier HMI On-off
Volume
Pause/play
Mode/source
Next/previous
Maximum power per (normal) channel [W] 3.0
(@3Ω)
Minimum speaker impedance per (normal) channel [Ω] 3
Maximum speaker impedance per (normal) channel [Ω] 8
Connectors
Power supply connector(s) Micro USB female
Pin header male (2.54mm)
IO-connector(s) Micro USB female
Audio jack 3.5mm female
Pin header male (2.54mm)
Speaker connector(s) Pin header male (2.54mm)
Package contents
Package contents 1x YX5200-24SS MP3 Module
