DY-SV5W MP3 Player Module

Availability: Directly available from warehouse in Eindhoven
SKU: 005797

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

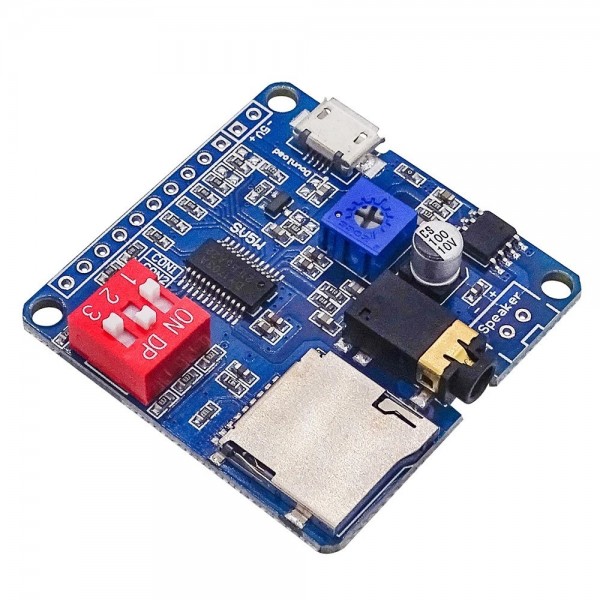

The DY-SV5W is an audio module that supports MP3 and WAV files. This module is equipped with an integrated audio amplifier, an SD card slot, audio jack, and can be controlled via UART or the GPIO pins.

See the next page for a library for the Arduino IDE: dyplayer

See the following video for instructions and other examples: Arduino C++ DY-SV5W MP3 Player

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DY-SV5W MP3 Player Module

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005797_DY-SV5W Voice Playback Module Datasheet.pdf

Tags: DY-SV5W MP3 Player Module , MP3MOD-DYSV5W , Audio Sources

Specifications

General
Brand	No brand
Manufacturer model/SKU	DY-SV5W
Features	SD-card adapter MP3 Audio amplifier
General physical appearance
Main color	Blue
Weight [g]	9

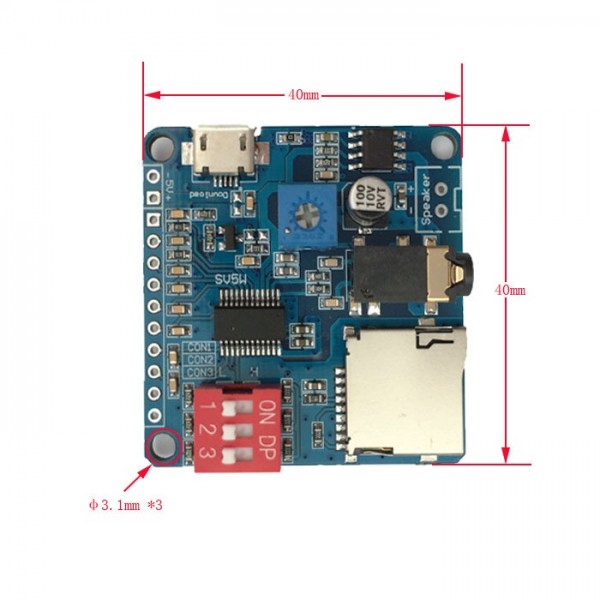

Dimension X [mm]	40
Dimension Y [mm]	40
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	2
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	UART
Default baudrate	9600
Supported SD card size	Micro SD
Audio amplifier
Amplifier chip	LTK5128D
Amplifier class	D
Number of (normal) channels	1
Amplifier HMI	Volume Pause/play Next/previous (volume with potentiometer, the rest via UART or GPIO pins)
Maximum power per (normal) channel [W]	3.1 (@4Ω)
Minimum speaker impedance per (normal) channel [Ω]	3
Maximum speaker impedance per (normal) channel [Ω]	8
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Micro USB female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Audio jack 3.5mm female
Speaker connector(s)	Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x DY-SV5W
