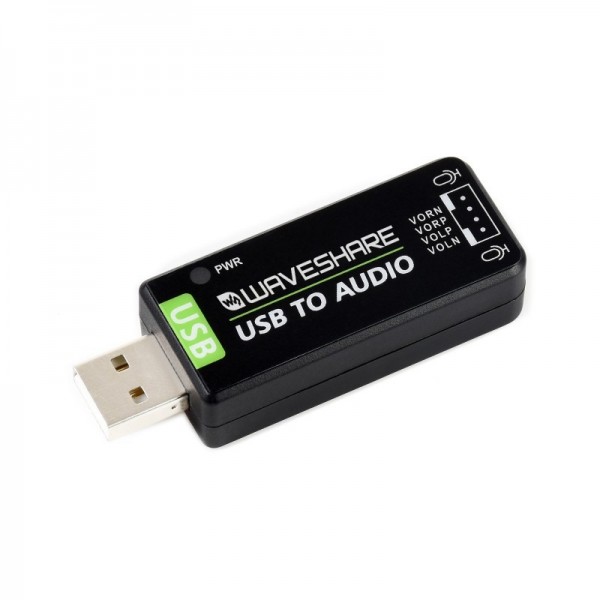

Waveshare USB Sound Card with Audio amplifier - 2.6W

Availability: Directly available from warehouse in Eindhoven
SKU: 004783

Based on 1 review(s) - Write a review

€8.50

Ex Tax: €7.02

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

A USB sound card with amplifier, ideal for connecting a small speaker to your PC or Raspberry Pi. Because the module uses the standard USB Audio protocol, no driver needs to be installed. The module is plug-and-play in combination with the following speaker set: Waveshare Speaker Set - 8Ω 5W

Speakers with 4Ω impedance are required for more volume, but then the USB port must also be able to supply more than 1A.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare USB Sound Card with Audio amplifier - 2.6W

Average Rating:

This product has 1 review(s) in total.

Tags: Waveshare USB Sound Card with Audio amplifier - 2.6W , WS-18833 , Amplifiers

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	18833
Features	Audio amplifier Microphone
General physical appearance
Main color	Black
Weight [g]	14

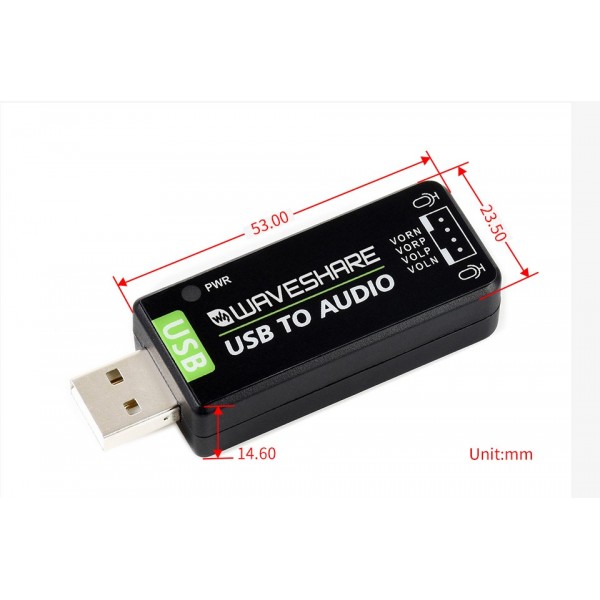

Dimension X [mm]	53
Dimension Y [mm]	24
Dimension Z [mm]	14
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	USB

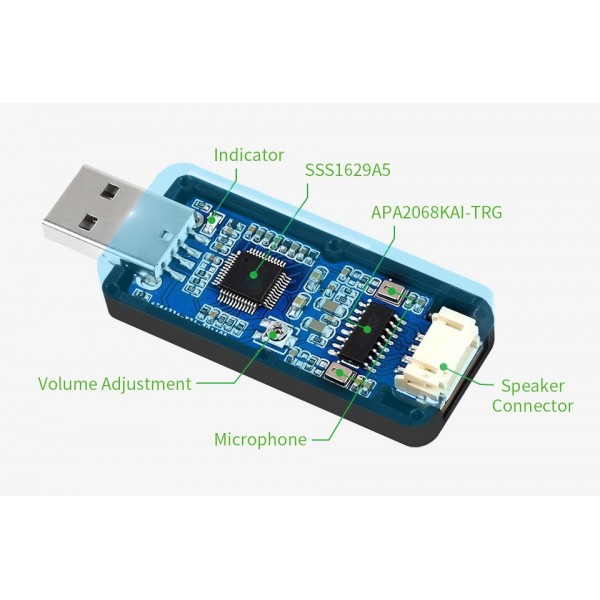

DAC chip	SSS1629A5
DAC resolution [bit]	16
Sound sensor
Type	Microphone
Audio amplifier
Amplifier chip	APA2068
Amplifier class	D
Number of (normal) channels	2
Maximum power per (normal) channel [W]	2.6 (@4Ω)
Minimum speaker impedance per (normal) channel [Ω]	4
Maximum speaker impedance per (normal) channel [Ω]	8
Connectors
Power supply connector(s)	USB-A male
IO-connector(s)	USB-A male
Speaker connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x USB Sound Card 1x USB-A extension cable
