Unexpected Maker I2S Audio Shield - MAX98357

Unexpected Maker I2S Audio Shield - MAX98357
Unexpected Maker I2S Audio Shield - MAX98357
Unexpected Maker I2S Audio Shield - MAX98357
Unexpected Maker I2S Audio Shield - MAX98357
Unexpected Maker I2S Audio Shield - MAX98357
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006158
Based on 0 review(s) - Write a review
€12.50
Ex Tax: €10.33
Add to Cart
Add to wishlist

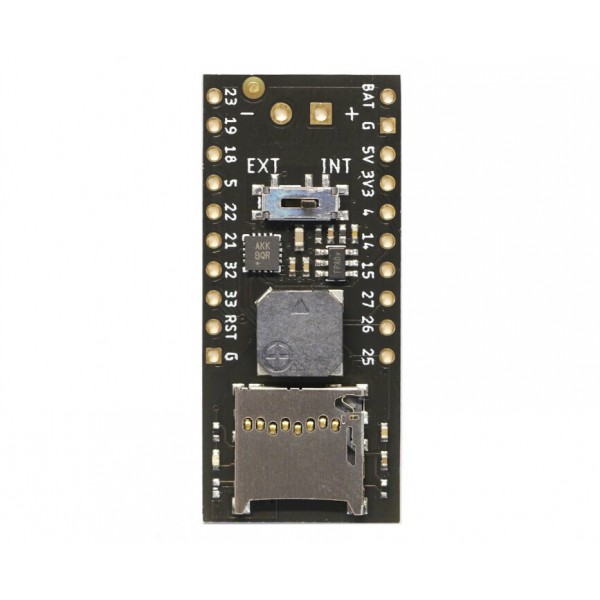

An audio shield for the TinyPICO, TinyS2/S3/C6 or ProS3 development boards. The shield contains an internal buzzer and can be connected to an external speaker, adjustable via the switch. Furthermore, the shield has an SD card slot and a connector for a Li-ion/Li-Po battery (module has no charging circuit).

See the following page for more information: Wiki

Please login or register to review

Reviews Over Unexpected Maker I2S Audio Shield - MAX98357

This product has 0 review(s) in total.

Tags: Audio , Audio Sources , Unexpected Maker I2S Audio Shield - MAX98357 , 006158 , Unexpected Maker , SH-AUDIO-I2S , Audio amplifier , SD-card adapter , Speaker/buzzer , I2S

Specifications

General
Brand Unexpected Maker
Manufacturer model/SKU SH-AUDIO-I2S
Features Speaker/buzzer
Audio amplifier
SD-card adapter
General physical appearance
Main color Black
Weight [g] 3
Dimension X [mm] 40
Dimension Y [mm] 18
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2S
Supported SD card size Micro SD
Audio amplifier
Amplifier chip MAX98357
Amplifier class D
Number of (normal) channels 1
Maximum power per (normal) channel [W] 1.3
(@4Ω, 3.3V)
Minimum speaker impedance per (normal) channel [Ω] 4
Maximum speaker impedance per (normal) channel [Ω] 8
Speaker
Speaker type Buzzer
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Speaker connector(s) Through hole solder pin(s)
(seperate screw terminal included)
Package contents
Package contents 1x I2S Audio Shield
2x Male pin header 10p
1x Speaker screw terminal
