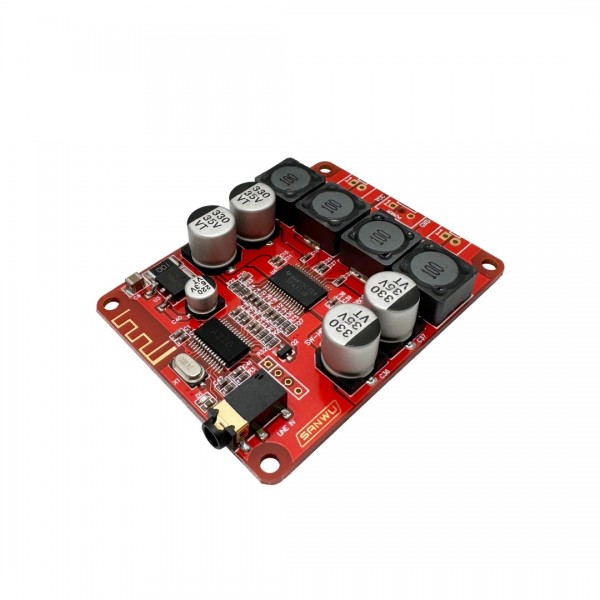

TPA3118 2x30W Audio Amplifier - Bluetooth 5.0

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This amplifier based on the TPA3118 chip can deliver up to 2x30W with two channels and is ideal for box and crate radios!

Please login or register to review

This product has 0 review(s) in total.

Tags: TPA3118 2x30W Audio Amplifier - Bluetooth 5.0 , SW-HF220-V1.0 , Amplifiers

General
Brand	No brand
Features	Audio amplifier
General physical appearance
Main color	Red
Weight [g]	36
Dimension X [mm]	69
Dimension Y [mm]	52
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	8
Maximum supply voltage [V DC]	26
Communication
Hardware interface(s)	Analog
Wireless communication
Interface(s)	Bluetooth
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Audio amplifier
Amplifier chip	TPA3118
Amplifier class	D
Number of (normal) channels	2
Number of subwoofer channels	0
Maximum power per (normal) channel [W]	30
Minimum speaker impedance per (normal) channel [Ω]	4
Maximum speaker impedance per (normal) channel [Ω]	8
Safety features	Short circuit Undervoltage Overvoltage Polarity Temperature
Connectors
Power supply connector(s)	Through hole solder pin(s) (5mm)
IO-connector(s)	Audio jack 3.5mm female
Speaker connector(s)	Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x Audio amplifier
