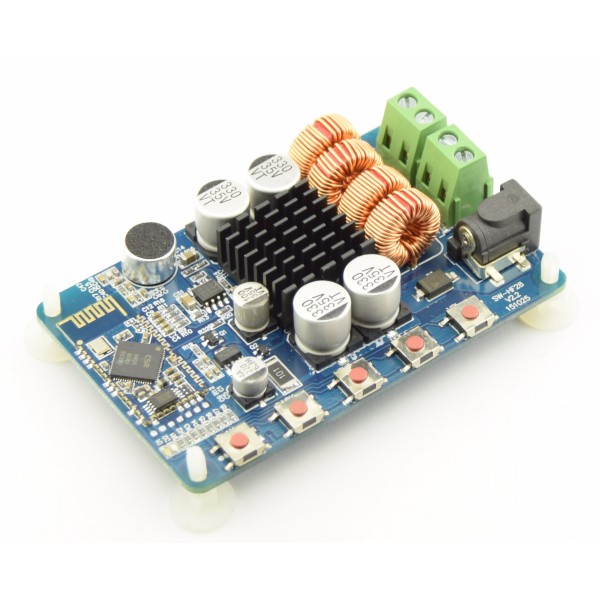

TPA3116 2x50W Audio Amplifier with Bluetooth 4.0

This TPA3116 amplifier has about the same compact size of the TA2024 and is therefore ideal for in crate and crate radio and the like!
There is, however, a big difference between, and that is the power of this amplifier of course.
In addition to its enormous power, this amplifier can be powered with 9V, 12V or 24V.
The specifications below indicate what you can achieve with these voltages.

Specifications:

• Works between 8V and 25V DC (lots of combinations possible)
• Very new and advanced chip from Texas Instruments
• Very energy efficient
• Numerous protections that give it an extra high "hobby factor". (does not break easily)
• Cooling block for optimum cooling
• Works with impedances between 4 and 8 ohms.
• Reverse polarity protection with a diode
• LEDs indicating the status of the bluetooth (waiting for connection, connected to device)
• Buttons for Bluetooth operation: Play, Back, Next
• Volume control buttons: VOL+, VOL -
• 2x 50W @ 21V 5A (4 Ohm)
• 2x 25W @ 15V 4A (4 Ohm)
• 2x 15W @ 12V 3A (4 Ohm)
• Dimensions: 83mm x 52mm x 17mm
• Plastic feet for assembly included (4 pieces)

In addition, this amplifier has a microphone that can work as a microphone via Bluetooth.

The bluetooth on this amplifier automatically turns on when the power is switched on. This can be found via bluetooth as "SANWU Audio".

The middle pin in the DC jack is the "plus", the outside of the DC jack is the "min".

Additional information: Datasheet TPA3116

What do you get:
1x TPA3116 2x50W Amplifier with Bluetooth 4.0
