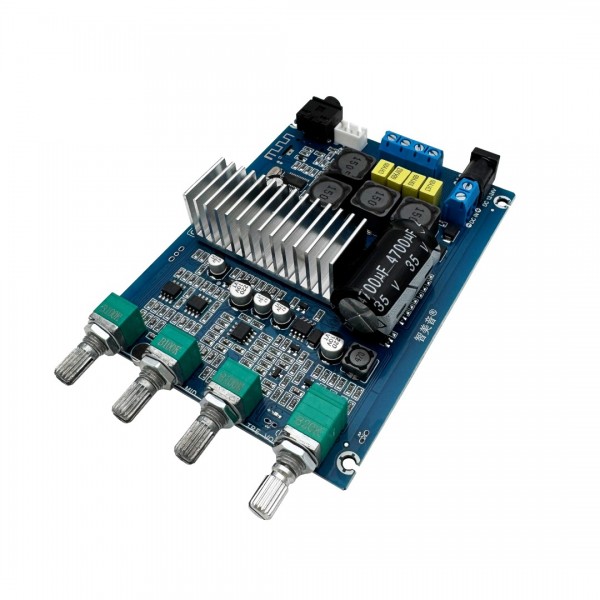

TPA3116 2x50W Audio Amplifier - Bluetooth 4.2 - Bass-Mid-Treble Control

This 2.1 TPA3116 amplifier with Bluetooth 4.2 can supply up to 50W on two channels. The size is relatively compact and is ideal for crate radios.

Specifications:

• Works between 12V and 24V DC
• Bluetooth 4.2 with approx. 8m range
• Very new and advanced chip from Texas Instruments
• Very energy efficient
• Numerous protections that give it an extra high "hobby factor". (does not break easily)
• Cooling blocks for optimum cooling
• Works with impedances between 4 and 8 ohms
• Potentiometer present for volume control with switch (see flowchart for functions)
• Potentiometer available for bass, mid and treble volume
• 3.5mm female jack(audio input)
• With microphone for handsfree calling
• Reverse polarity protection with a diode (can be bypassed for lower energy consumption)
• LED indicating the status of the amplifier (on/off)
• 2x 50W @ 21V 5A (2x 4 Ohm)
• 2x 25W @ 15V 4A (4 Ohm)
• 2x 15W @ 12V 3A (4 Ohm)
• Dimensions: 83mm x 110mm x 25mm

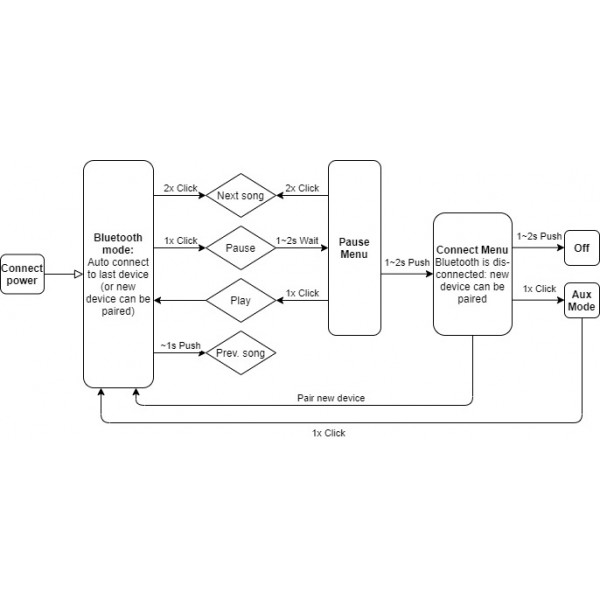

Functions of push button in master volume button: See flowchart

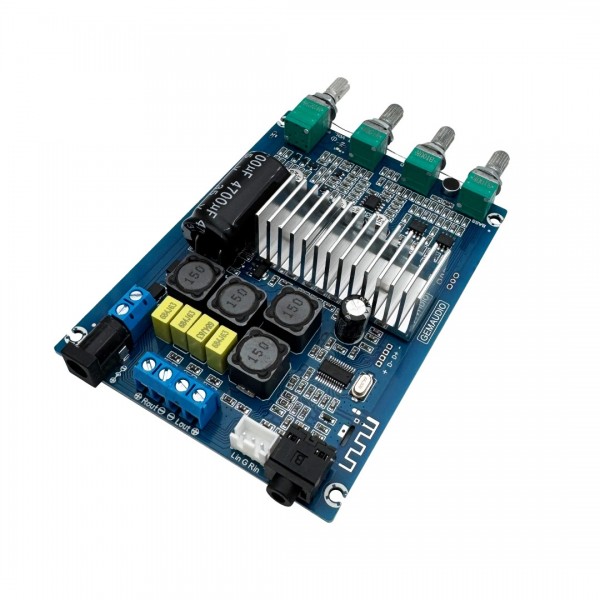

*The automatic sleep mode can be deactivated by making a solder bridge on the solder pads near the USB pins (+, D-, D+, -) on the back of the amplifier.

Additional information: Datasheet TPA3116

Note: The appearance of the amplifier may vary slightly because of a newer version of this amplifier.

See the following page for an enclosure for this amplifier: Case for TPA3116 2x50W Audio Amplifier - Bass-Mid-Treble Control

What do you get:
1x TPA3116 2.0 2x50W Amplifier with bass/mid/treble control and Bluetooth 4.2
