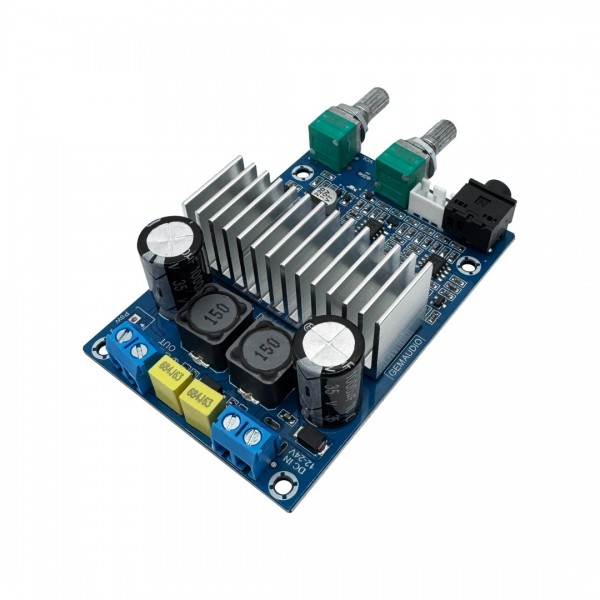

TPA3116 1x100W Audio Amplifier

This TPA3116 amplifier is the mono version of the TPA3116 2x50W Audio amplifier and is ideal for a subwoofer.

Specifications:

• Works between 12V and 24V DC (many combinations possible)
• Very new and advanced chip from Texas Instruments
• Very energy efficient
• Numerous protections that give it an extra high "hobby factor" (will not break easily)
• Cooling block for optimum cooling
• Works with impedances between 2 and 8 ohms
• Potentiometer available for volume control
• Potentiometer available for cut-off frequency
• Output frequency: 20Hz-180Hz
• 3.5mm female jack (audio input)
• Reverse polarity protection with a diode
• LED indicating the status of the amplifier (on/off)
• 1x 40W @  12V (2 Ohm)
• 1x 60W @ 15V  (2 Ohm)
• 1x 90W @ 19V  (2 Ohm)
• 1x 100W @ 24V (2-3 Ohm)
• Dimensions: 98.5mm x 55mm x 30mm

Note: At low voltages the LED will be less bright.

Additional information: Datasheet TPA3116

What do you get:

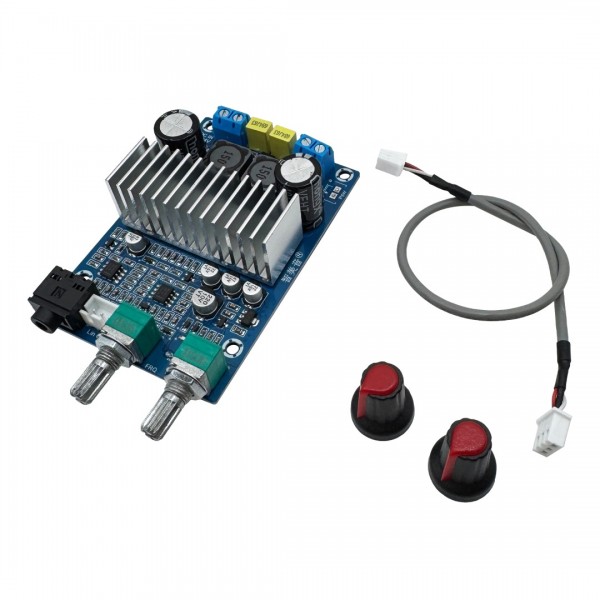

1x TPA3116 1x100W Amplifier
