Smart Panlee Audio Amplifier Module - for 7 inch Serial Screen

Based on 0 review(s) - Write a review

€3.50

Ex Tax: €2.89

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

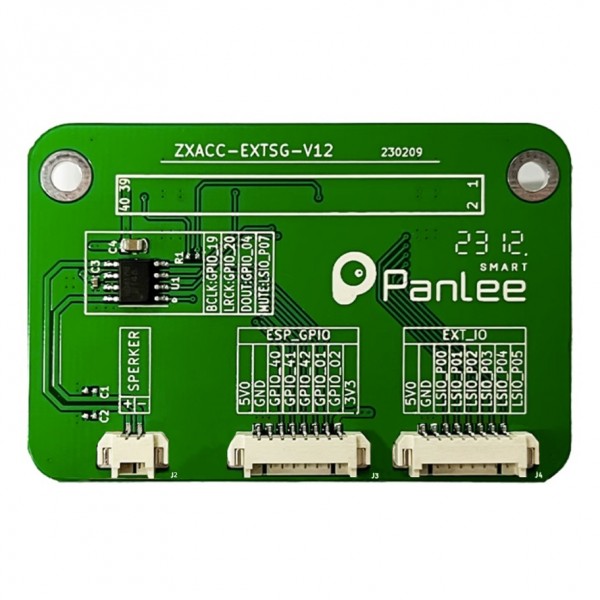

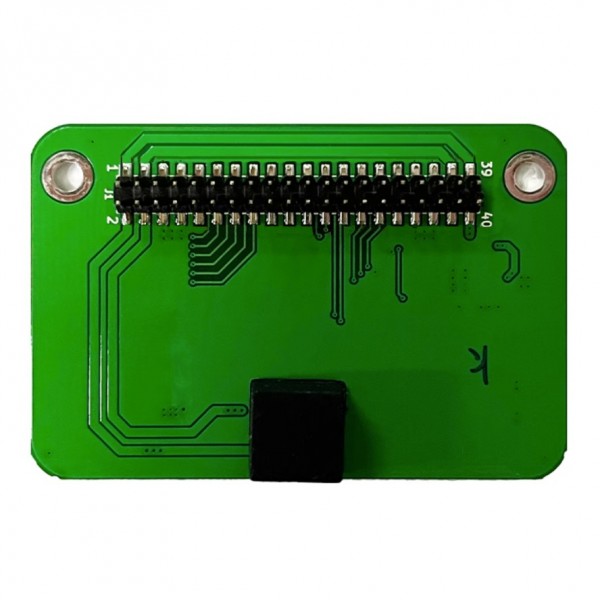

An audio amplifier module that can be placed as a shield on the Smart Panlee 7 inch Serial Screen.

Note: No cables are included, they can be ordered separately here:

Molex Picoblade (compatible) cable 2p (for connecting speaker)
Molex Picoblade (compatible) cable 8p (optional, for connecting additional GPIO pins)

Please login or register to review

This product has 0 review(s) in total.

Tags: Smart Panlee Audio Amplifier Module - for 7 inch Serial Screen , ZXACC-EXTSG-V12 , Amplifiers

General
Brand	Smart Panlee
Manufacturer model/SKU	ZXACC-EXTSG-V12
Features	Audio amplifier
General physical appearance
Main color	Green
Weight [g]	12
Dimension X [mm]	60
Dimension Y [mm]	40
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5.5
Communication
Hardware interface(s)	I2S
Audio amplifier
Amplifier chip	NS4168
Number of (normal) channels	1
Maximum power per (normal) channel [W]	2.5 (@5V, 4Ω)
Minimum speaker impedance per (normal) channel [Ω]	4
Maximum speaker impedance per (normal) channel [Ω]	8
Connectors
Power supply connector(s)	Molex Picoblade (compatible) male Pin header male (2.00mm)
IO-connector(s)	Molex Picoblade (compatible) male Pin header male (2.00mm)
Speaker connector(s)	Molex Picoblade (compatible) male
Package contents
Package contents	1x Audio amplifier module
