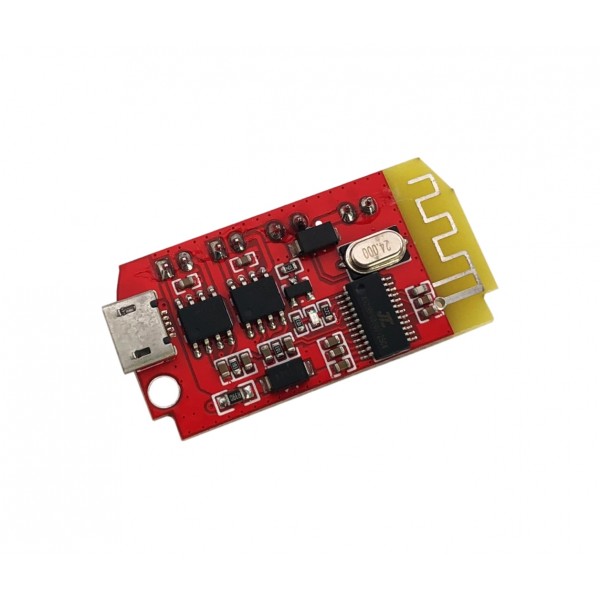

2x5W Mini Stereo Audio Amplifier - CT14 - Bluetooth 4.2

This Stereo CT14 bluetooth audio receiver with 2x5W amplifier is a simple bluetooth module with which audio can be played via bluetooth from, for example, a laptop or phone on the audio pins that are present on this board.
This module does not need to be programmed and can therefore be used very easily.
he board has a micro USB connection with which it can be powered (micro USB cable not included).

Specifications:

• Supply voltage: 5V DC (via micro USB)
• Max. current: 2A
• Max. audio power: 2x5W (4 ohm speakers)
• Bluetooth version: 4.2
• Supported file types: WAV/WMA/FLAC/APE/MP3
• Bluetooth name: DW-CT-14+

Package Contents:

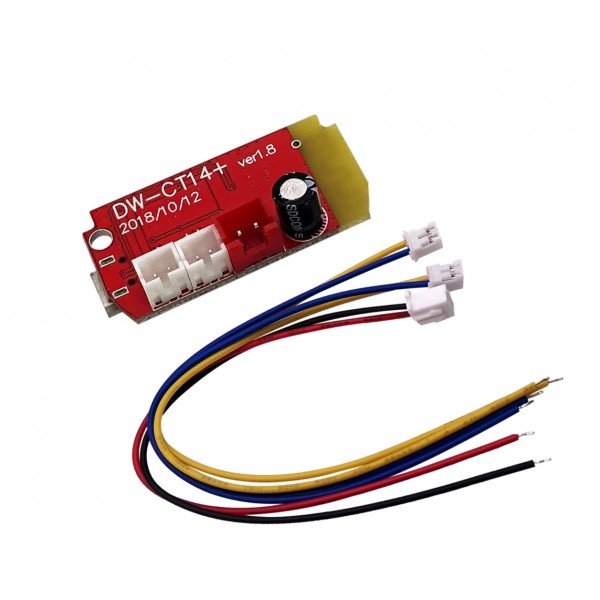

• 1x Stereo Audio Amplifier - CT14
• 2x 2p JST-PH cable (~ 10cm) for Lout and Rout
• 1x 2p JST-XH cable (~ 10cm) for battery

Please note: The board also contains a "VBAT" pin to which a 3.7V Li-ion/Li-Po battery could be connected, however we do not recommend this due to the lack of a suitable charging circuit.

Please note: If this amplifier is powered via micro USB, the power supply must be able to supply at least 2A.
